Semi Automatic Paper Punching And Binding Machine SPM450 for double wire closing and paper punching
1 set
MOQ
Negotiate (more quantity more cheap )
Price
Semi Automatic Paper Punching And Binding Machine SPM450 for double wire closing and paper punching
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: BP MACHINERY
Certification: CE
Model Number: SPM450
Payment & Shipping Terms
Packaging Details: One Wooden case 0.735x0.7x1.28m³
Delivery Time: 5-30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets/month
Specifications
Punching Width: Max Size 430mm
Punch Thickness: Max Punching Thickness 4mm
Binding Wire O: Double Wire Min 3/16 - Max 1 1/2 Inches
Closing Thickness: Max 32mm Notebook
Speed: 150 Times/ Minuter
Punch Margin: 2.5-6.5mm (not Include Calendar Die)
Operation: Foot Pedal
Motor Power: 1PH ,220V/50HZ,750W
Product Description

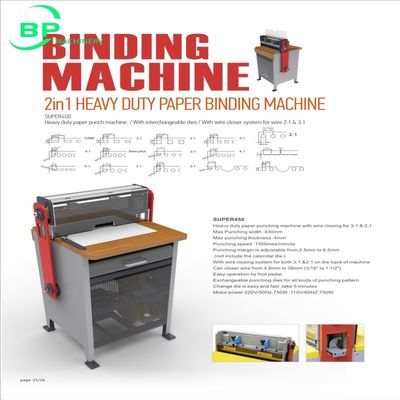

Semi Automatic Paper Punching And Binding Machine SPM450

(Wire o machine)

        SPM450 punching and binding machine is one of BP Machinery for office or small scale print shop to do punch and binding easy jobs ,operate this machine very easy no need training .



        SPM450 is a heavy duty electric punching machine, which can be used in industry, enterprise and large organizations with firm design. With handsome and commodious appearance, The working platform is also large enough for you to work comfortably. SPM450 has advanced motor reducer and special-made mechanical clutch. Motor can run continuously and punching controlled by foot pedal which is easy and safe for operation. one side for punching hole and the other side for wire closing.

       Machine we sold many many sets to overseas customer and feedback is ok ,therefore we think this machine is a good choice to handle simple and simple jobs with very less quantity orders.

Technical data :

Model name SPM450
Punch width  max 430mm
Punch thickness Max 4mm
Punch speed 150 times / minuter
Margin could be adjust 2.5mm-6.5mm
Closing wire  3/16 - 1 1/2
Machine change mould time 5 minuters
Power 230V,50HZ/750W
110V,60HZ/750W



                                                        1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.

Advantages :

  • Can change dies, choose different hole

  • Electric wire closing system on the back of machine

  • Can closer wire size from 3/16 "(4.8mm ) to 1 1/2" (38mm )

  • Two adjustable closing Knob make the closing even and perfect

  • Durable and years free and low cost

Paper Punching and wire binding machine

(Machine stocks enough ,if you have request ,could contact us soon )



Punching tool :

Semi Automatic Paper Punching And Binding Machine SPM450 for double wire closing and paper punching 1

SPM450 paper Punching machine punching die

Common hole pitch size



Hole size Appearance punch tool choose
3:1  Square 4x4 or Round 4.5mm 3:1 ,Square 4x4 or 5x5 or round 4.5mm
3:1   Thumb cutting square 4x4 3:1 ,thumb cut square 4x4 or 5x5
2:1   Square 5x5 or 6x6 3:1 ,Square 5x5 or 6x6
2:1 Round hole 6mm  2:1 ,round hole 6mm
3:1 Oval : 4x3 3:1 ,Oval 4x3



(Many size punching tool could be choose  )

3:1 pitch ,Square or round hole

2:1 pitch ,Square or round hole  Optional choose

Or we aceept customer provide Holes size OEM.



Application : (Hole punching and doule wire binding )

SPM450 Punching& binding machine for Wire o closing and paper punching

 This machine is suitable for stockings sell without any problems ,so for partner in overseas can consider have some stocks one time for future sell..



How to operate this machine

Some cusotmer may also have questions ,how to use even this machine is very simple .One side put paper do punching work ,another side to do wire o closing .

APM450 punching machine working steps
