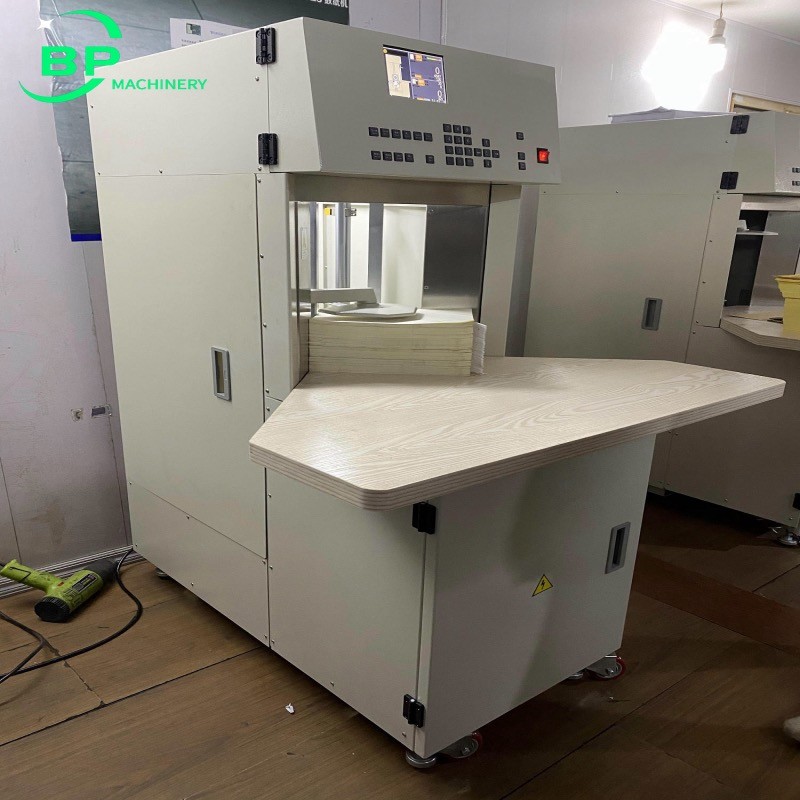

BPSZJ is the one of BP Machinery for paper counter ,already 20 years manufacutre experience in China market .It already be popular machine to counting paper and good tested in China factory .
| paper thickness range | 22～230g/m²(Carbon paper,offset printing paper, coated paper,etc.) |
| paper size | Min.100X150mm,Max 600X600mm |
|
Paper stacking height |
300mm max |
| Power Supply/voltage | AC220±10V,50Hz |
| Motor | 0.4KW |
| Feeding table width | 600x600 mm |
| Feeding table height | 760mm |
| Machine size | 900(W)X1080(L)X1500(H) |
| Machine weight | 230KG |
| label for paper in pile | Width 6mm,Length 100m |
| Consumed Power | 600kw |
Features of High speed automatic paper sheet counter machine
1. Adopt servo motor control, 7-inch color screen
2. Can works with any types paper such as carbon paper, offset paper, coated paper, art paper, post cards, copy paper etc, high counting speed. It can mix counting different thickness of paper simultaneously.
3. It has random paper label insert function.
4. It has paper quantity detection function between preset quantity and finished quantity. The specified number counting function is for sorting out the required number of paper from paper pile.
5. The machine has auto-diagnostic function. Any error will display in the screen.
6. It has paper label fast changing structure.
Machine electrical configuration list
| America ARM Core CPU Frequency:400MHZ |
| SDRAM:SAMSUNG DDR2,64MB |
| FLASH ROM:SAMSUNG 64MB |
| Listepping moto china |
| TFT:Foxconn 7 Inch |
| KEYPAD:OMRON |
| Paper Count Motor:FUJI Servo Motor |
| Air Pump Motor:chinakorea |
| IF Sensor:OMRON |
| Hall Sensor:OMRON |
| Switch Power:Taiwan Meanwell |
| Cable:America TE |
Machines structure parts picture

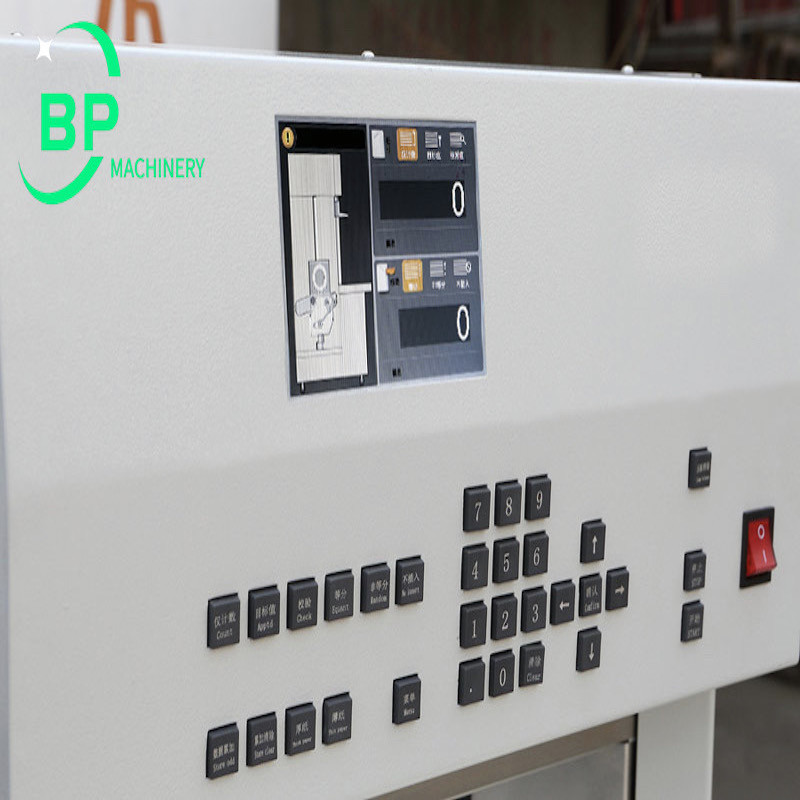

(The structure of computer system and operation panel)
(Front structure of the label cutting unit)

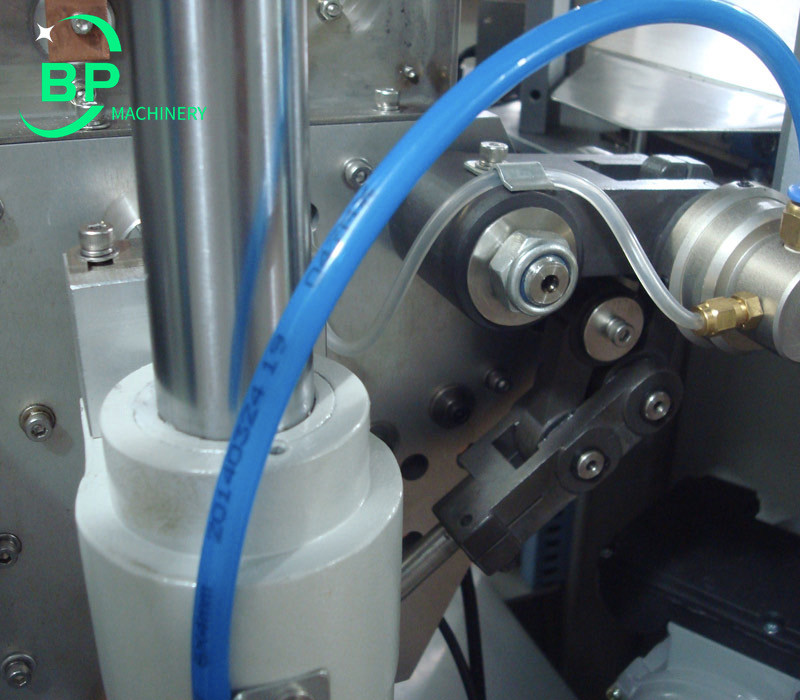

(Side structure of the paper sucking unit)
(Side view of the Japan Fuji motor unit)
(Using Omron limit sensor)
(Using Japanese original NSK bearing)
Japan Orion vacuum pump (Optional)

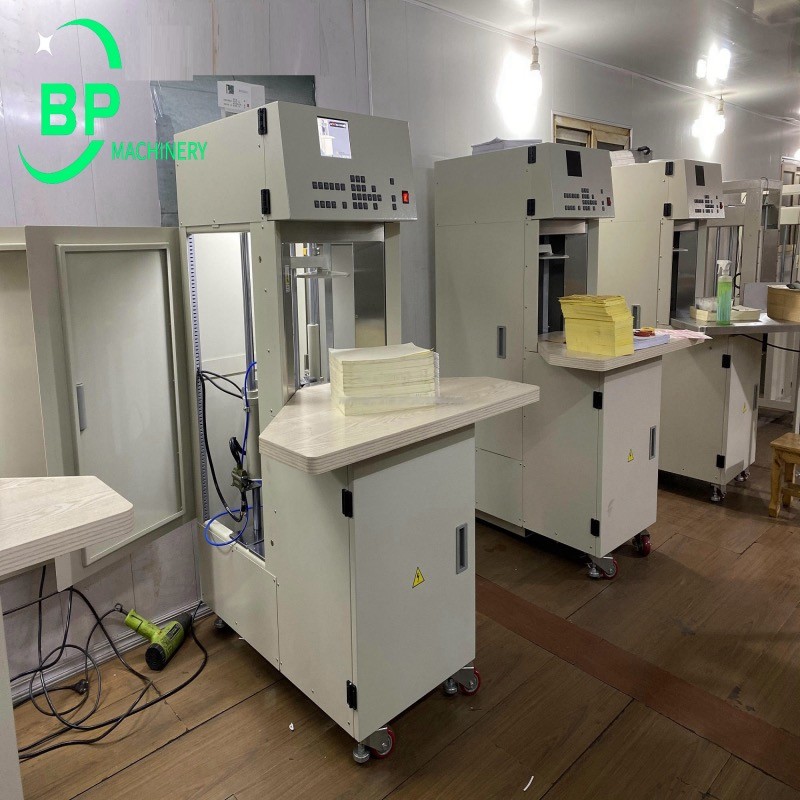

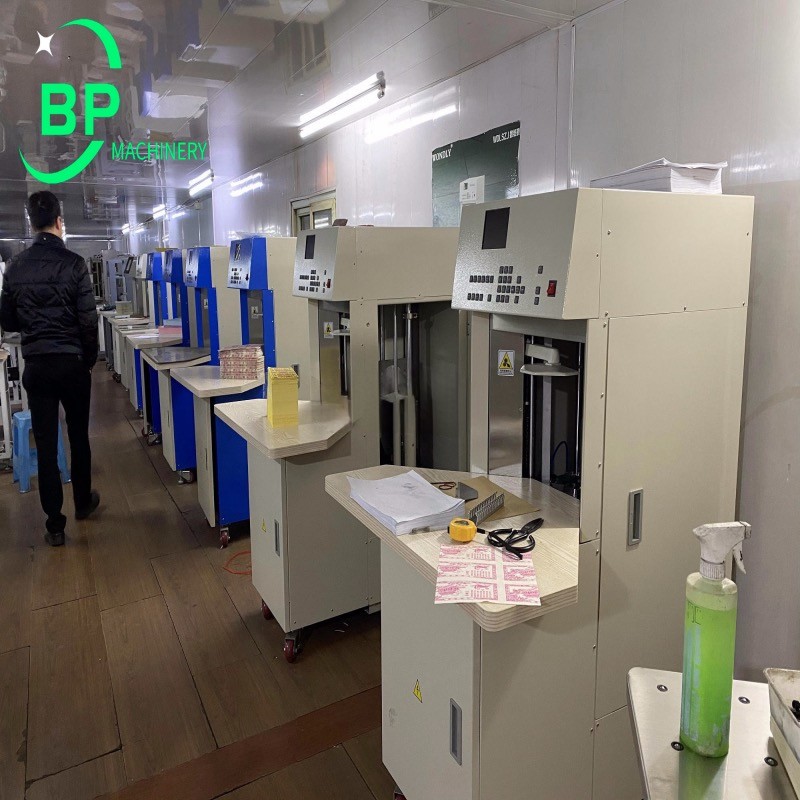

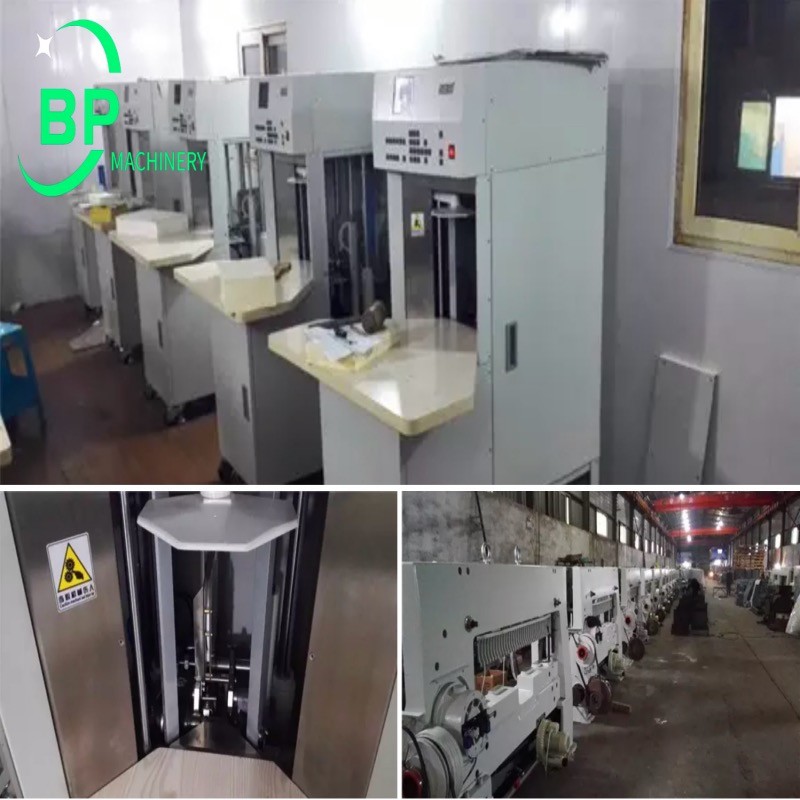

Appliacation picture:
