High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115
1 SET
MOQ
Negotiate (more quantity more cheap )
Price
High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: BP Machinery
Certification: CE certification
Model Number: QZYK
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets / month
Specifications
Type: Guillotine ,Paper Cutter ,paper Cutting
Machinery Test Report:: Provide
Driven Type: Hydraulic
Speed: 45cycles/min
Size: 115
Core Components: Motor,Bearing ,PLC
Weight: 2500KGS
Voltage: 380V
Warranty: 1 Year ,12months
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Product Description

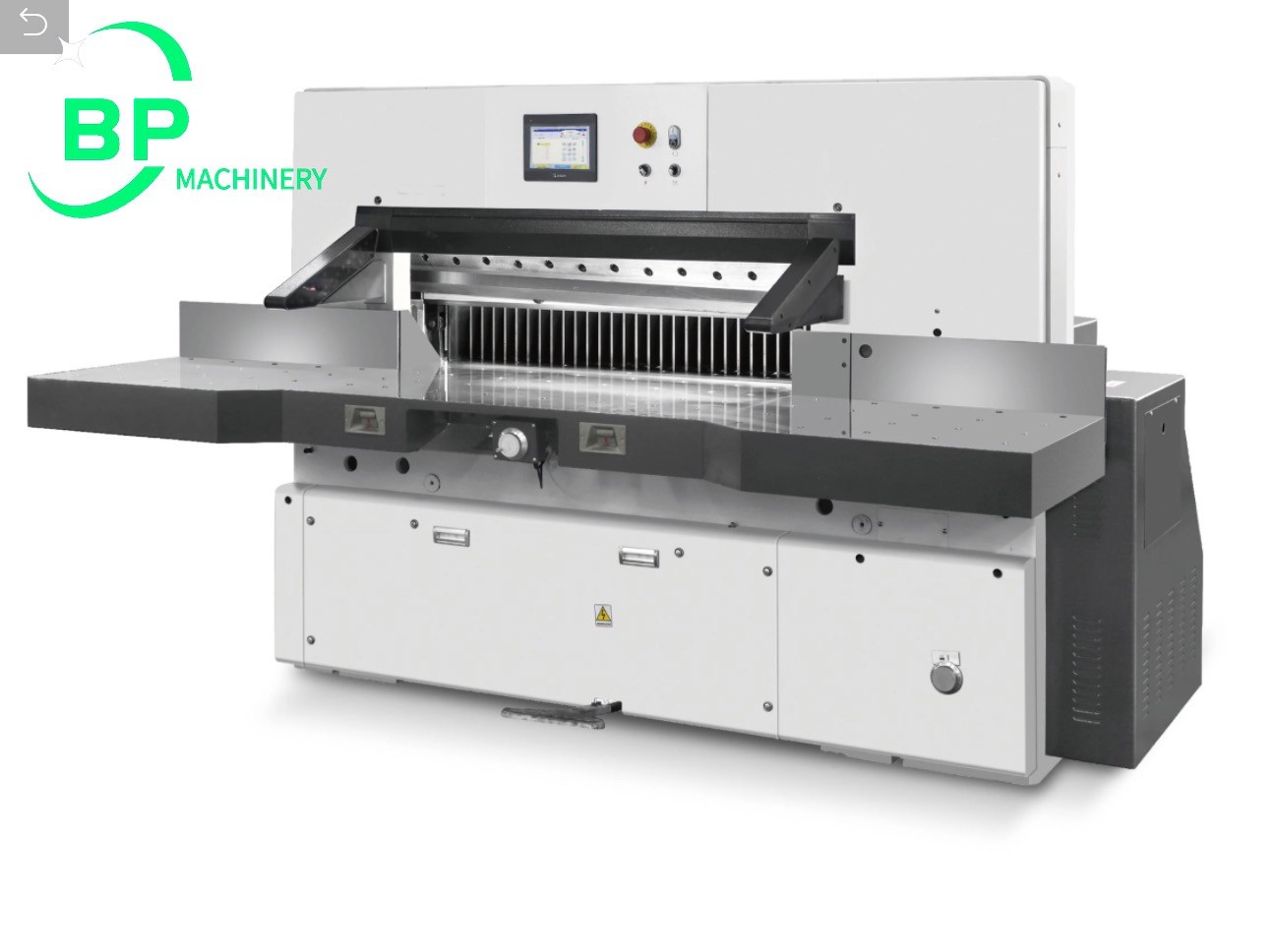

High Quality Paper Guillotine K Serial Machines /Paper Cutter /Paper Cutting QZYK115

Other size : 78/92/115/130/137/186/220 K

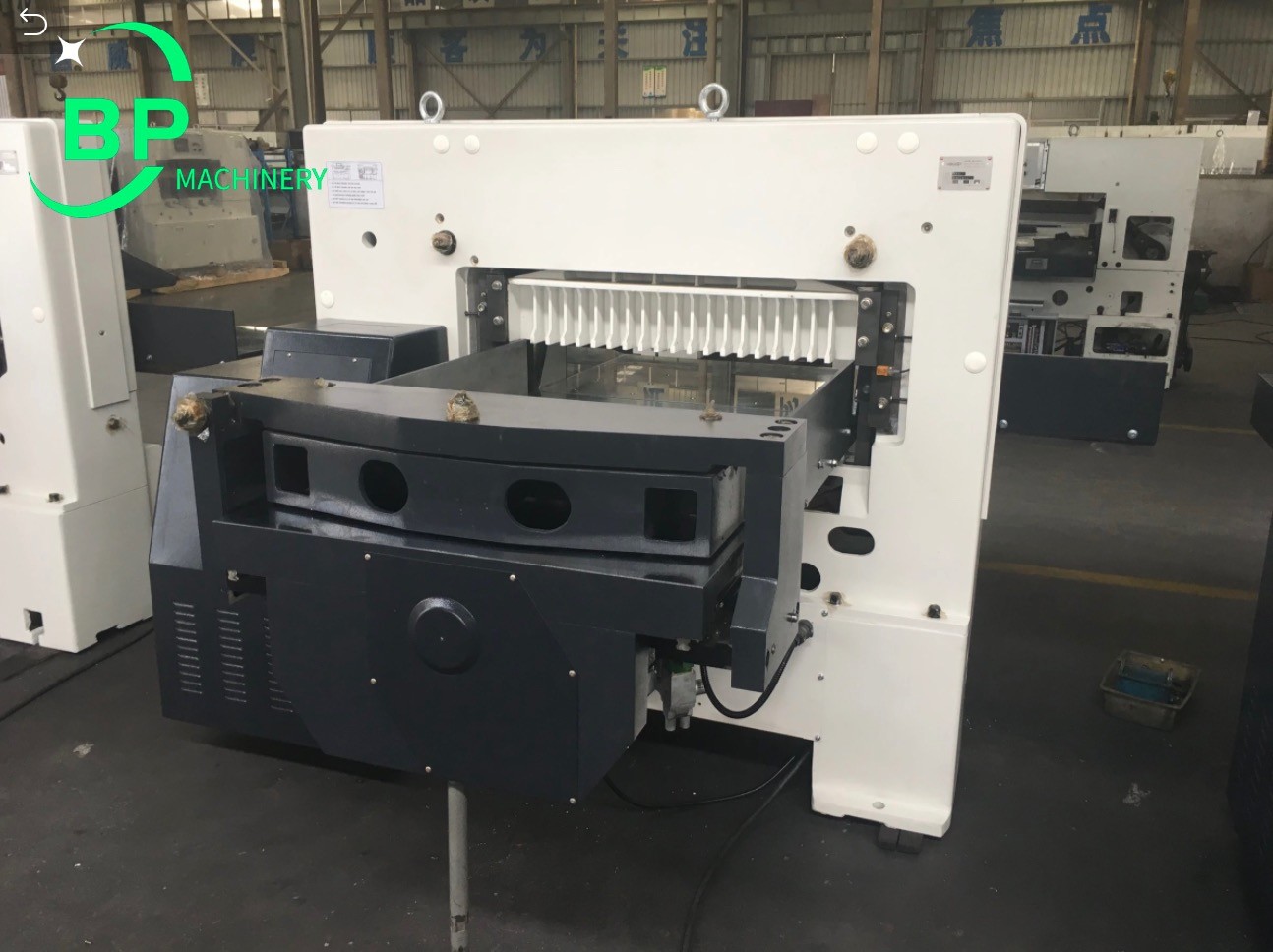

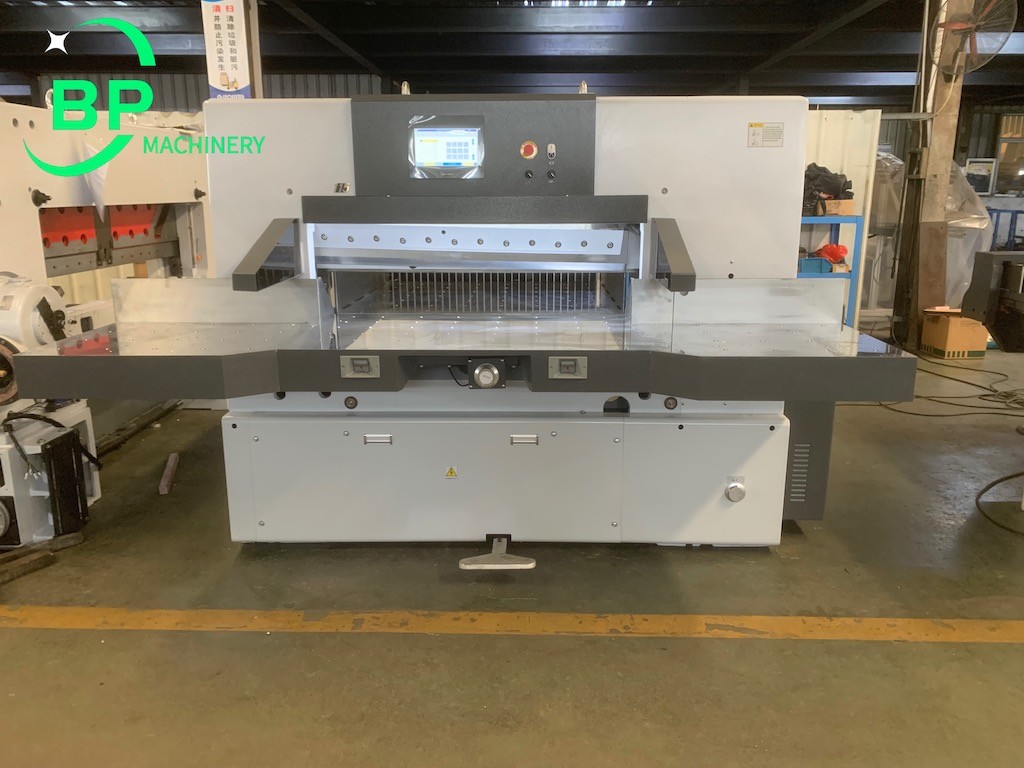

High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 0

Description:

BP Machinery K serial paper cutter or paper Guillotine is very popular in China and overseas market .



It equipped with AC digital servo controlling technology and10inches colorful touching screen, the data resolution rate is 0.01mm, has self-diagnosticfunction of troubles and displays the operating pattern, 100 program units,over 10000 different cutting positions, it can memorize, store and dynamicfollow-up. The max paper-pushing speed is 5-15m/min. It adopts Japanese hydraulic components, France, Japan and Korea electric components. Taiwan ball lead screw and linear double guide-rail. PLC control system for electric configuration. Its key parts adopt imported bearing of lowmaintenance.IR rayprotective device is more convenient for cutting with optical knife-line alignment,button operated by two hands, singlcirculation cutting device ect.

Technical parameters:

Model / Specifications 78 92 115 130 137 186 220
Cutting width(cm) 78 92 115 130 137 186 220
Max.cutting height without assistance pressing plate(cm) 13 13 16.5 13 16.5 16.5 16.5
Max.cutting depth(cm) 78 93 115 130 145 200 220
Min cutting depth without assistance pressing plate(cm) 2.5 2.5 3 3 3 3 3
Extended length of working table(cm) 64 65 73 73 74 75 75
Height of working table(cm) 86.5 86 89 86.5 89-92 89-92 89-92
Machine width including side working table(cm) 215 233 266 266 287 342 376
Total length of working table(cm) 178 198 226 241 259 327 355
Cutting speed(r/min) 45 45 45 45 45 40 33
Max. Paper pressure(n) 30000 35000 40000 40000 45000 65000 70000
Power of main motor(kw) 3 3 4 4 4 7.5 7.5
Motor for paper feeding(kw) 0.75 0.75 0.75 0.75 1.00 1.00 1.20
Air pump(kw) 0.55 0.55 0.75 0.75 0.75X2 0.75*2 0.75*2
Machine weight(kg) 2500 2700 4000 3900 4500 7000 10200
Overall dimension(cm) 210x140x195 225x140x195 255x160x215 260x153x195 280x160x215 340*182*230 390*190*270





Configuration:



No. Configuration Brand Producing
1 Display screen+computer WEINVIEW10inches color touch screen Taiwan
2 Motherboard chipset ATMTEL America
3 Controlling PLC Panasonic PLC Japan
4 Drive under the knife Flat worm reducer Sino-US joint venture
5 Motor driver SE Servo motor control system Japan
6 Feed leadscrew ABBA Ball screw Taiwan
7 Guide-rail ABBA High-precision linear guide Taiwan
8 Worktable Slotless chrome platform with air cushion HT2500 Casting
9 Bearing MSK Bearing Japan
10 Sensor OMRON Japan
11 Switch MACK Taiwan
12 Air switch LS Korean
13 Power switch SANLI Taiwan
14 Locating switch Panasonic Japan
15 Contacts Schneider France
16 Host Button Moeller Sino-German joint venture
17 Bridge rectifier SEP Taiwan
18 Seals MERKEL Japan
19 Hydraulic Components YUKEN Japan
20 Hydraulic Fittings HONDA Japan
21 Passage control system Relief Italy

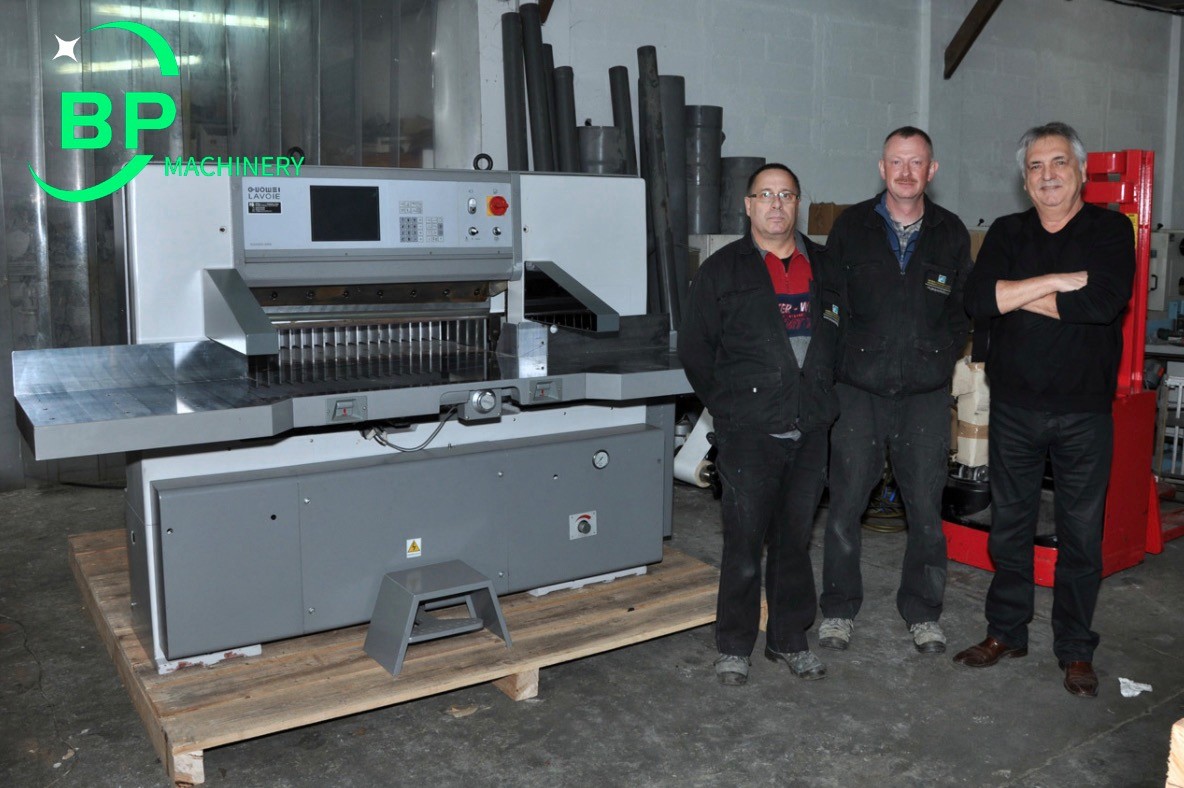

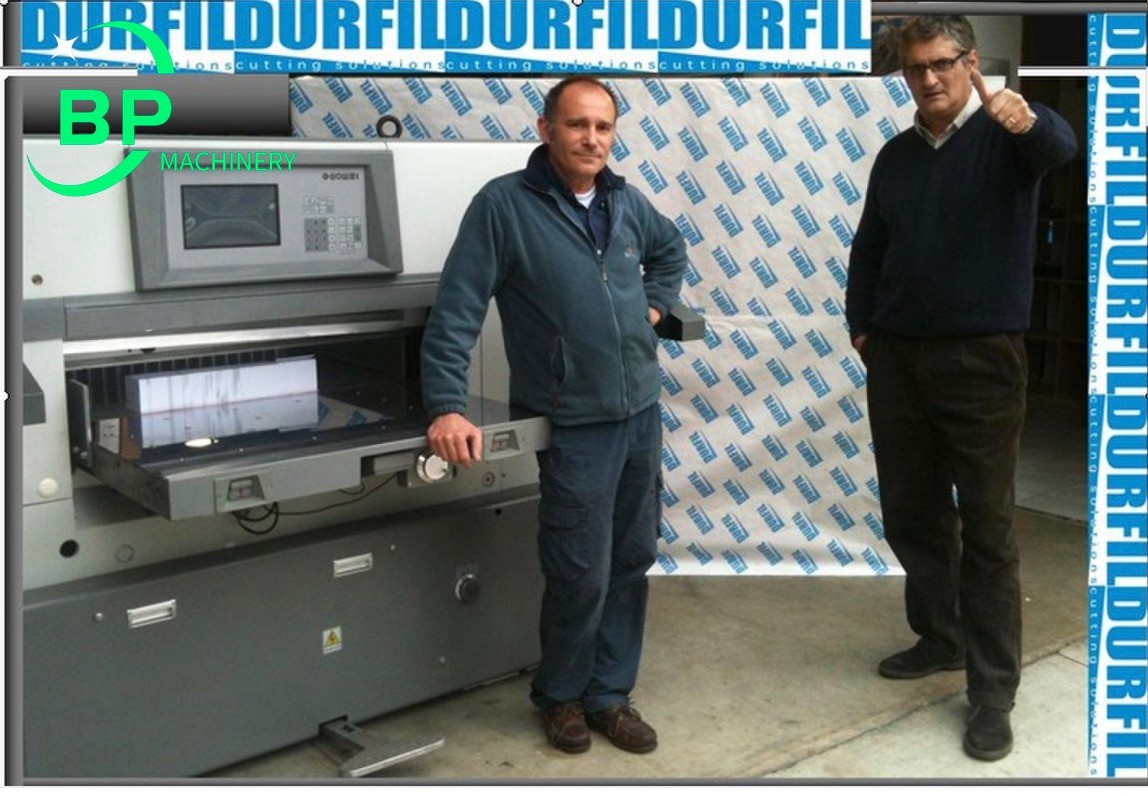

Machines installed in overseas customers



paper cutter K serial BP MachineryPaper Guillotine machine K serial BP MachineryMalaysia K serial Paper cutter /Paper cutting /Paper Guillotine

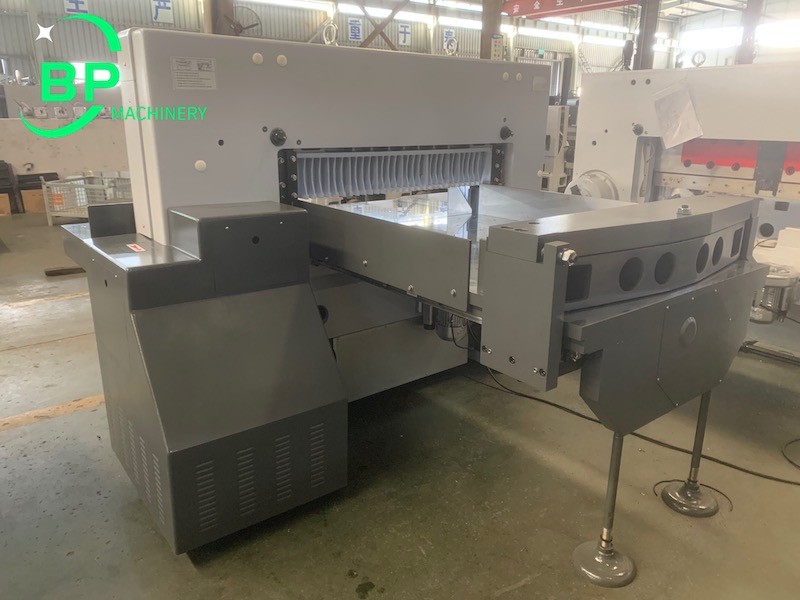

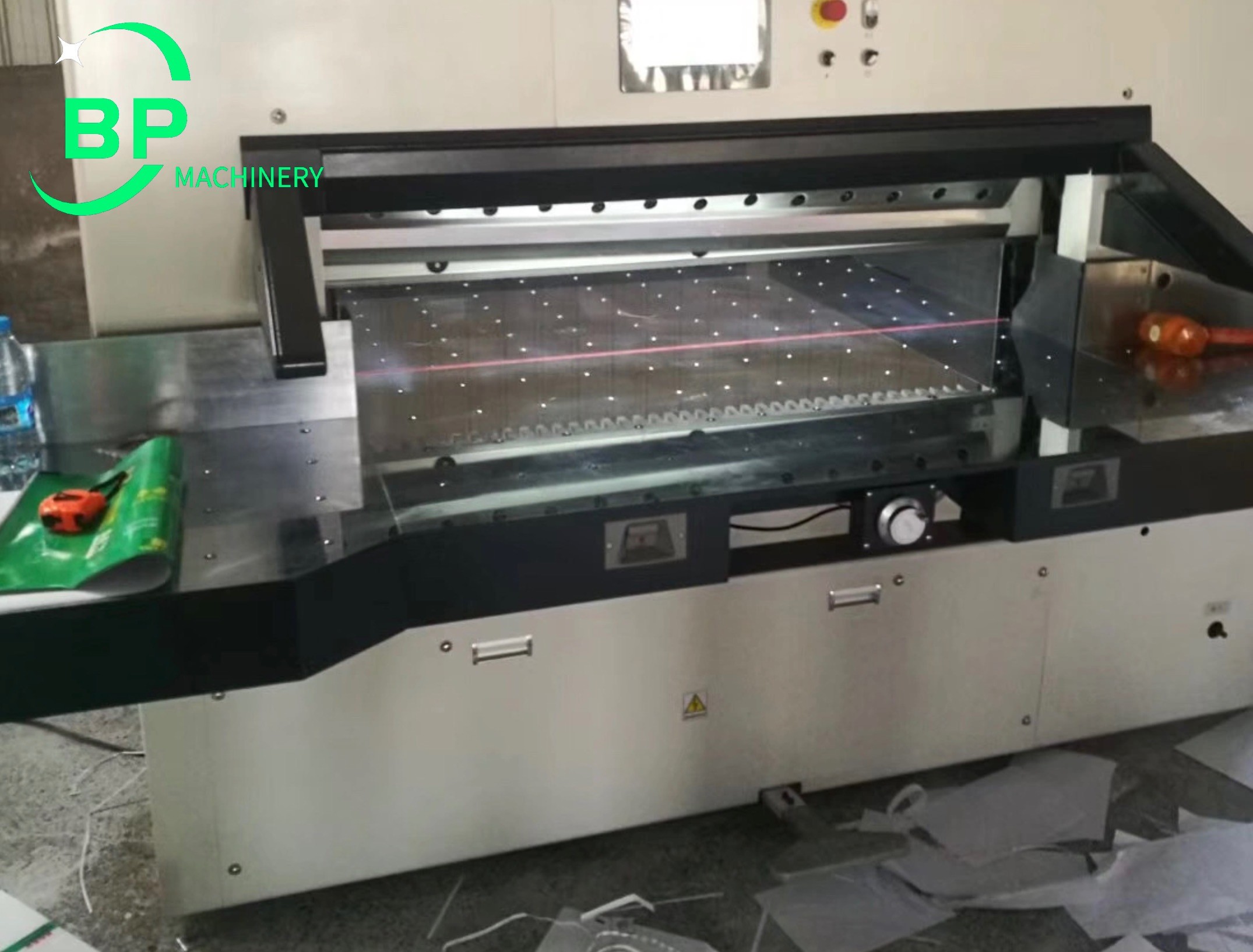

High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 4High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 5High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 6

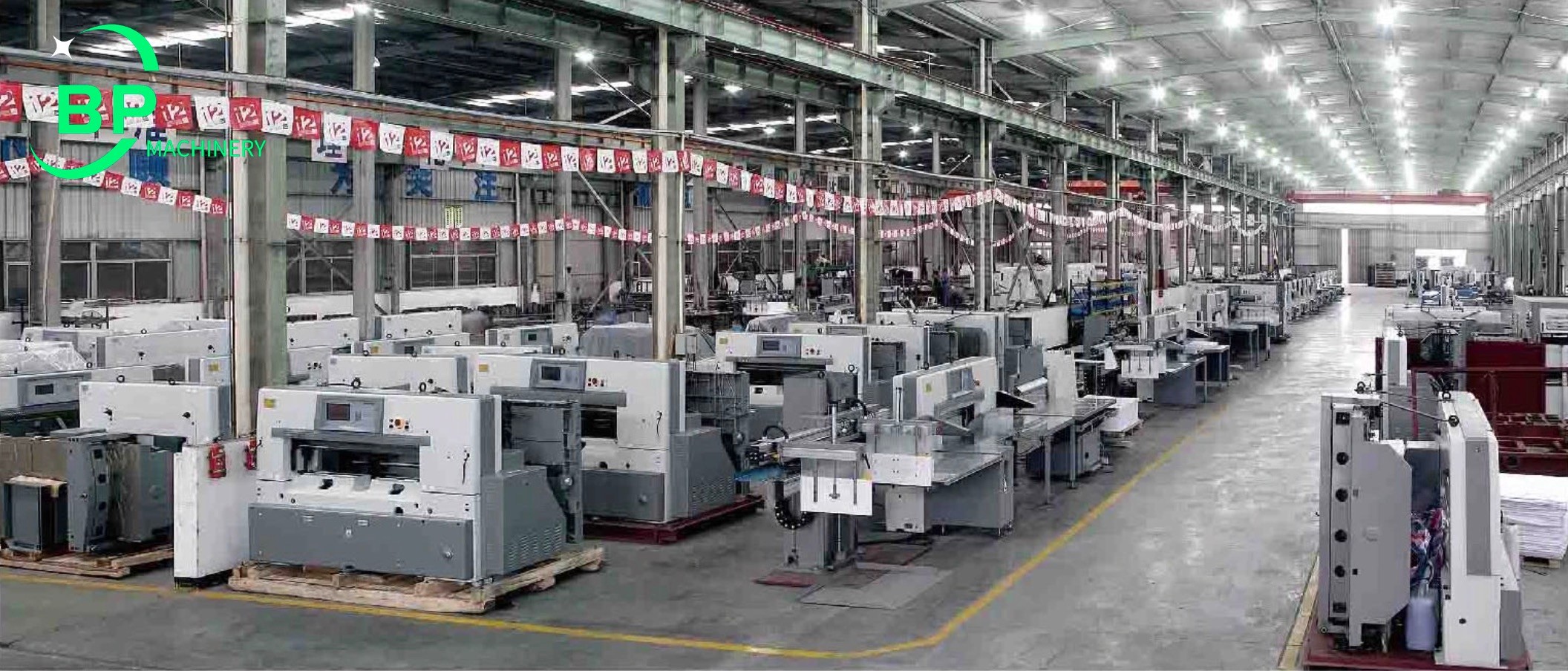

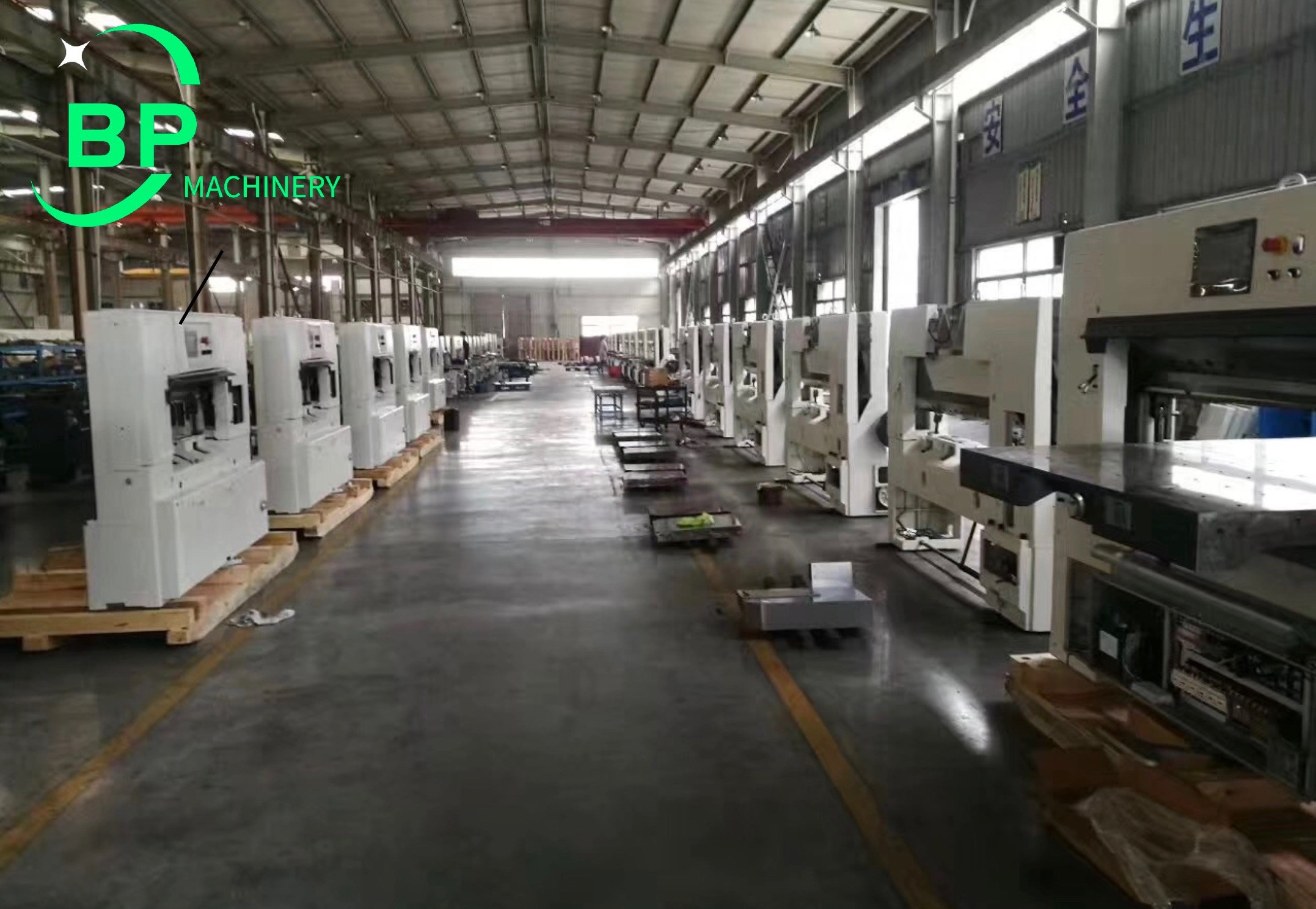

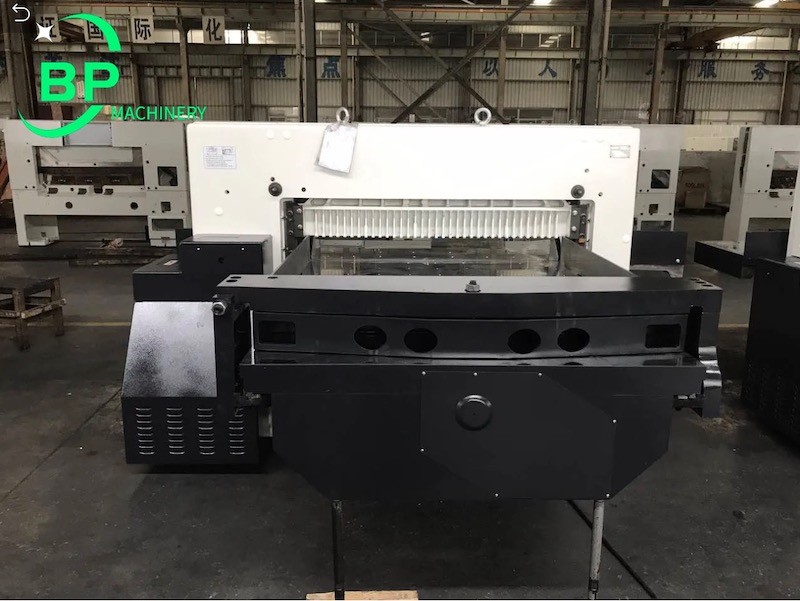

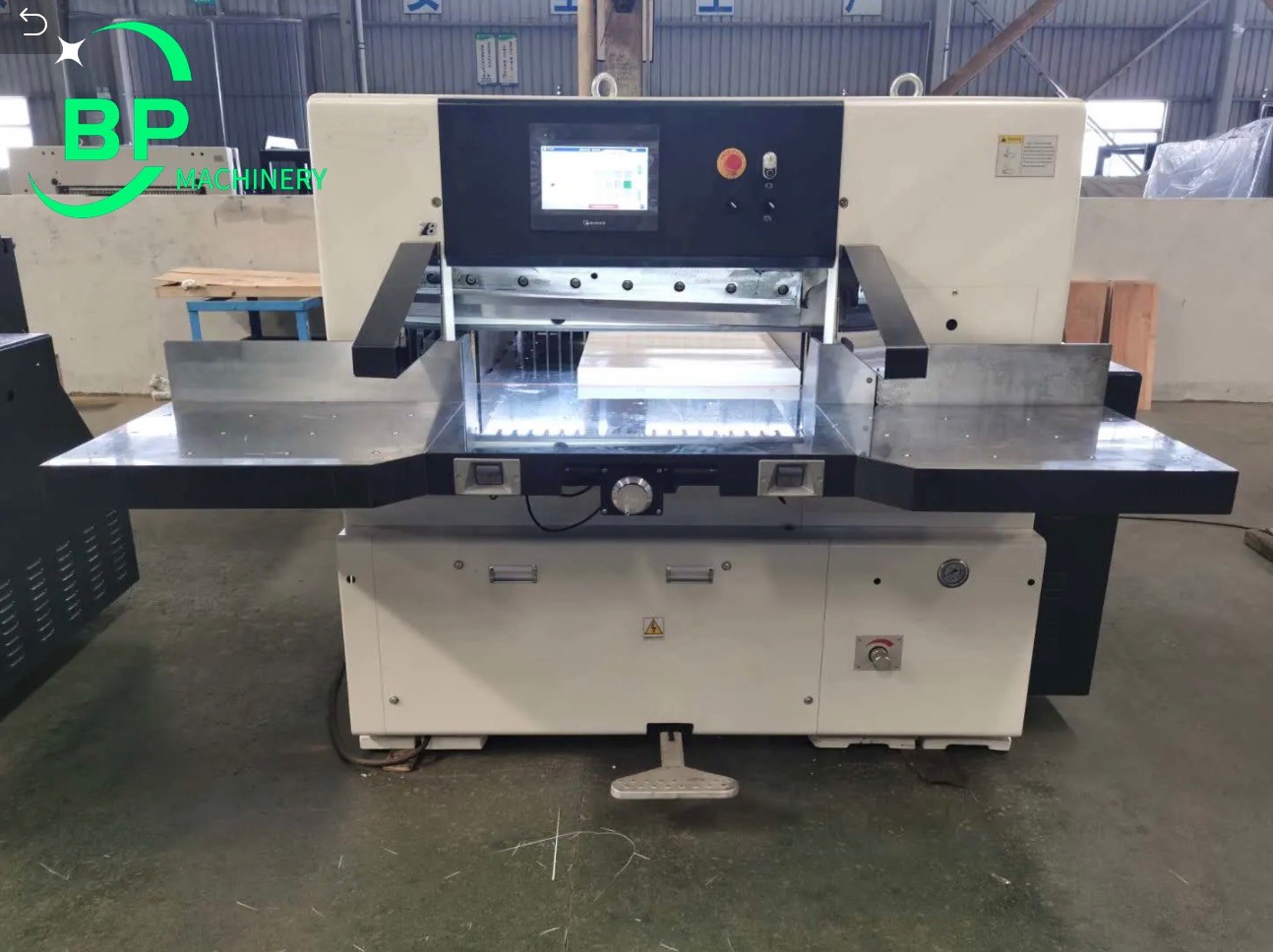

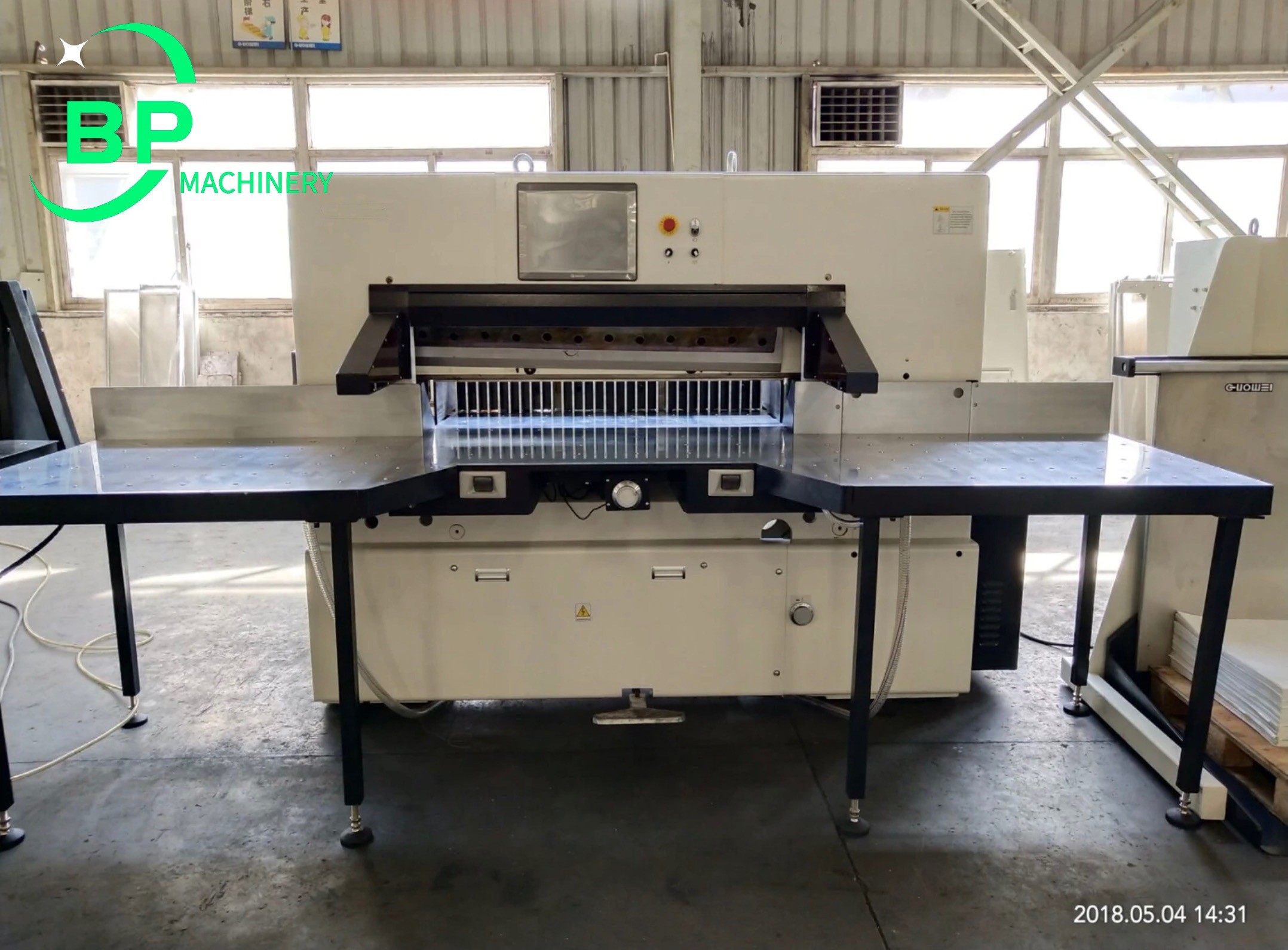

Our company machines assembling pictures

High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 7High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 8High quality Paper Guillotine K Serial Machines /Paper Cutter /paper cutting QZYK115 9
