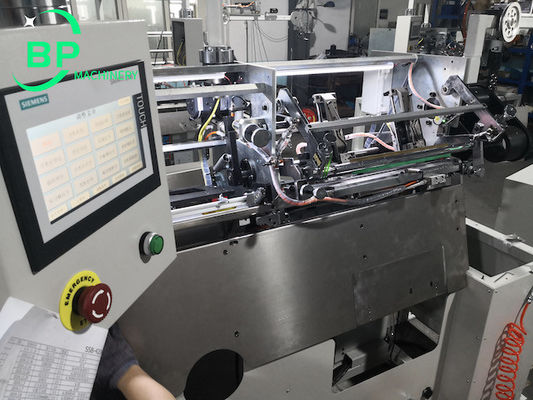

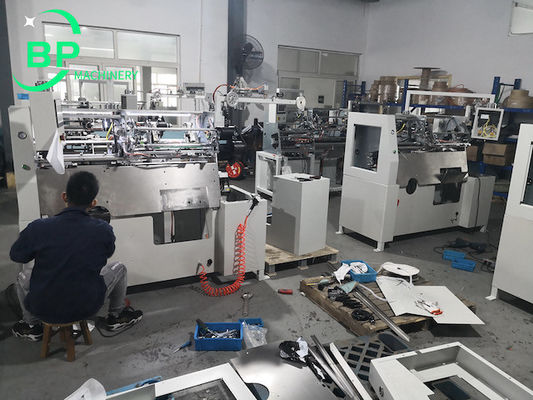

Semi Automatic Metal Spiral Binding Machine SSB420 For Notebook with coil lock function
Description :
SSB420 model spiral binding machine is popular machine for notebook factory produce spiral book .
Notebook Spiral binding machine SSB420 used for spiral metal close,spiral metal bind is another bind method for notebook,also popular for market.Compare double wire bind,it save material,as only single wire,also the book used by single wire bind look more special.
Machine operational priciple :
Material nylon coated wire go straight by adjust device and be twist in the roll bar,the roll bar we also could call spiral forming bar,when spiral formed,worker put notebook in left feeder device,finish feeder action,notebook will be deliver to spiral bind work area,then knife cut,notebook drop down and deliver by conveyor.
Technical data :
| Speed | 600-900 books/hour |
| Air Pressure | 5-8 Kgf |
| Wire Diameter | 8-32mm |
| Binding size | 75mm-420mm |
| Power | 1PH 220V 50/60HZ(other voltage on request |
| size | 1900mmx700mx1600mm |
| Net weight | 600Kg |
Applicative spiral dia and notebook thickness relations
| Diameter(mm) | Line Diameter(mm) | Aperture(mm) | Binding thickness(mm) |
| 8 | 0.7-0.8 | Φ3.0 | 5 |
| 10 | 0.7-0.8 | Φ3.0 | 7 |
| 12 | 0.8-0.9 | Φ3.5 | 9 |
| 14 | 1.0-1.1 | Φ4.0 | 11 |
| 16 | 1.0-1.1 | Φ4.0 | 12 |
| 18 | 1.0-1.1 | Φ4.0 | 14 |
| 20 | 1.1-1.2 | Φ4.0 | 15 |
| 22 | 1.1-1.2 | Φ5.0 | 17 |
| 25 | 1.1-1.2 | Φ5.0 | 20 |
| 28 | 1.2-1.3 | Φ5.0 | 23 |
| 32 | 1.2-1.4 | Φ5.0 | 26 |
Machine Common could do spiral min 8mm ,max spiral dia 25mm ,for some special design ,it can be do max 32mm spiral dia .
Machine details mould parts
From left to right : Spiral dia bar Hole pitch teetch
If you do spiral dia 10mm ,to binding 5-6 mm notebook ,then you need use 10mm core size
Hole pitch teetch size same with notebook hole pitch ,if use 6.35 hole pitch ,then you need used 6.35 hole pitch teetch bar
If you wanna coil lock cutting like picture show ,you need purchase our machine to be used do coil lock .
Application :
1 : Max A3 notebook , Min A7 notebook
2. Notebook thickness max 20mm
3. Could do notebook cover bigger differ inner paper .
Why you need choose this machine do spiral book produce
1 . First of course you wanna do coil lock cutting
2.Affordable price ,compare Germany machine ,now we give you optional choice
3. Compare other similar machine in China ,this do not have limits ,can do notebook cover bigger inner paper.
4. 90% choice in China notebook manufacture ,good test and stable .
