Other size : 78/92/115/130/137/186/220 K
BP Machinery K serial paper cutter or paper Guillotine is very popular in China and overseas market .

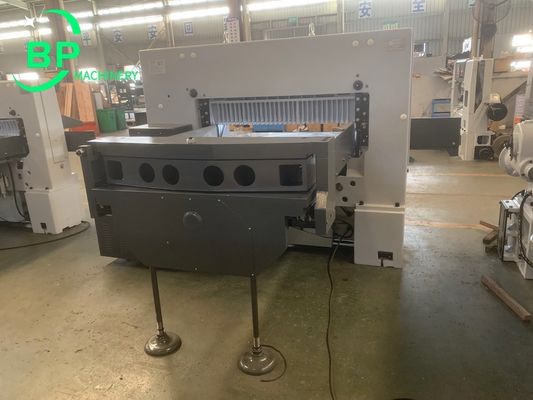

This type K130 paper cutter Working table is fully chrome-plated with air balls, advanced international REGISTER SYSTEM. Japan Mistsubishi alternative numbers servo control technology, 10 inches display screen, data resolution is up to 0.01mm, self trouble diagnostic function and running type display, 100 program groups, more than 5000 different cutting positons, memory, storage, register precision more or less 0.025mm, dynamic follow-up, max feeding speed 5-16m/min. Worm speed reducer is used for cutting.
Italy hydraulic components, imported electrical components, imported ball lead screw are adopted. Linear double guide rails, no-slot working table, ejecting device of knife holder, inside electronic knife locker, safety and convenient knife replacement device, safety device for overloading cutting, buttons by two hands safety device, main motor overloading protection for cutting, IR photoelectric protection, paper impeller muster put on steam, PLC control system are adopted. In the crucial part imported Japan and USA simple-maintenance bearings are adopted. (accord CE standard).
| Model | Unit | 130 | 137 | 155 | 166 | 186 |
| Max.Cutting Width | cm | 130 | 137 | 155 | 166 | 186 |
| inch | 51.2 | 54 | 61 | 65.4 | 73.2 | |
| Max.Cutting Length | cm | 130 | 145 | 155 | 166 | 195 |
| inch | 51.2 | 57 | 61 | 65.4 | 76.8 | |
| Max.Cutting Height (without false clamp) |
cm | 13 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 5.1 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min.Cutting Size (without false clamp) |
cm | 3 | 3 | 3 | 3 | 3 |
| inch | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Front Table length | cm | 73 | 74 | 75 | 75 | 75 |
| inch | 28.7 | 29.1 | 29.5 | 29.5 | 29.5 | |
| Max.Cutting Speed | times/min | 45 | 45 | 42 | 42 | 40 |
| Max.Clamp Pressure | N | 40000 | 45000 | 55000 | 60000 | 65000 |
| Power of Main Motor | Kw | 4 | 5.5 | 5.5 | 5.5 | 7.5 |
| Paper Feeding Motor | Kw | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 |
| Air Pump | Kw | 0.75 | 0.75 | 0.75×2 | 0.75×2 | 0.75×2 |
| Net Weight | Kg | 3600 | 4500 | 4650 | 4900 | 6200 |
| Gross Weight | Kg | 3900 | 4850 | 5000 | 5300 | 6600 |
| Packing Size(L×W×H) | cm | 260×153×195 | 280×160×215 | 296×165×215 | 315×160×215 | 340×182×230 |
K Series hydraulic program control paper cutter/paper cutting machine/guillotine has the features of beautiful and standard appearance, high quality, good use, stable structure, fast cutting speed, high precision ect. It is used to cut all kinds of printing paper, kraft paper, books, leaflets, cards ect. also can be used to cut all kinds of leathe, artificial plastic film, celluloid and foils ect.
A. Ball lead screw and linear guide-rail makes paper pusher run smooth, low noise, accurate positioning, enhance the cutting precision and speed faster, prolong the service life of paper cutter.
B, The working tables are all chrome plated and equipped with air balls, the paper pusher easily and rust-proof. Remark: Large side working table(1000*800mm) is optional.
C. IR photoelectric protection, buttons by two hands safety safety devices.
D. Safety device for knife bed, overloading protection for cutting, automatic return safety device.
E. Imported Hydraulic components are adopted, the pressure can be adjusted. the paper is pressed twice by pressure-increased system.
F. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
G. Euipped with the optical knife alignment to make cutting more conveniently.
H. PLC control system
I. Ejecting device or knife stick.
J. Flat worm speed reducer transmission.
K. Inside electronic knife locker to make the cutting more safety and stable
L Multination language operation interface.
M. Graphical instruction, block programming operation
