Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

1 set
MOQ
USD
Price
Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Kraft Envelope File Auxiliary Equipment
Max Envelope: Standard Machine Max 350X250+40mm-60mm Length Cover
Min Envelope: Standard Machine Min 330X230+40mm-60mm Length Cover
Other Size Envelope: Show Data To Us, We Could Do Special Design
Power: 1ph,220v,7kw
Speed: 30-45 Per Minuters
Envelope Weight: 120-200 Gsm
Basic Infomation
Place of Origin: China
Brand Name: BinPeng
Certification: CE,ISO
Model Number: BP002
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 10 sets /45 days
Product Description

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 0

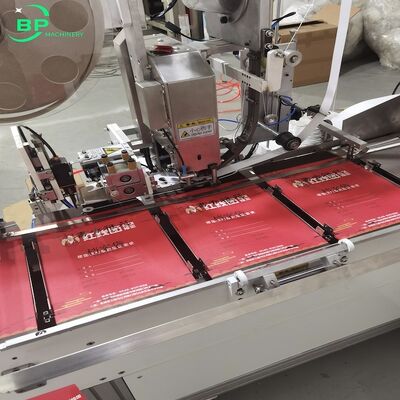

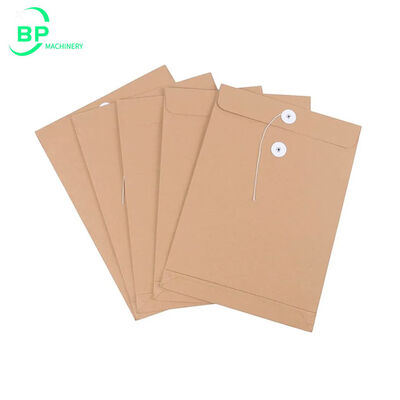

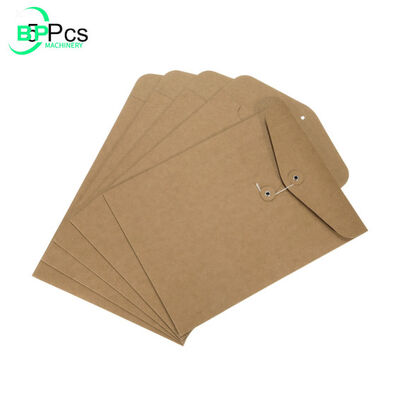

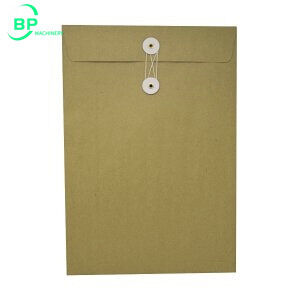

BP002 kraft envelope auxiliary machine  is special made for Kraft envelope file which wanna hole perforate for button insert and string cuting for lock function ,detail check below finished picture :

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 1Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 2Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 3Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 4



Available produce: Lx W x bottom width 340x240 x40mm ,paper gsm 120-200gsm



L : 330- 350 mm ,W : 230 - 250 mm ,Bottom width 30-50mm ,cover width : 40-60mm

Technical data :

Speed 30-45 pcs/min
Envelope paper weight 120-200 gsm
Dimension 5500 x 2000 x 2000mm
Envelope size See picture (customer made )
Power 1ph,220v ,7kw
Weight 1300KG




Machine main configuration



Support motor: 750W 7 sets.

②57 stepper motor: 2 sets.

③Touch screen control system: 3 sets.

④ Corner punching and punching all-in-one machine for assembly line: 2 sets.

⑤ Wire feeding and trimming system: 1 set.

⑥Paper feeding and paper cutting system: 2 sets.



Also for metal clasp insert machine for kraft envelope can check below link

https://www.bp-machine.com/sale-41024976-kraft-envelope-clasp-inserting-and-hole-punching-machine-bp001-made-in-china.html

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 5Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 6Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china 7
