Home /Products/Notebook back spine wrapping machine/Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding

1 set
MOQ
FOB NINGBO
Price
Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding
Features Gallery Product Description Request A Quote
Features
Specifications
Glue Type: Cold Glue Or Hot Glue Or Hot And Cold Glue Functions
Machine Type: Automatic Book Spine Taping Machine
Glue Method: Wheel Transport With Sloping Platform Glue
Max Size Of Book Back: 600x310 Mm
Min Size Of Book Back: 180 X 70 Mm
Book Thickness: 4-30mm
Back Strip Paper Width: 20-50mm
Max Speed: 18 Meter /minuter
Power: 13.5 KW ,3PH,380V
Overall Dimensions (LXWXH）: 11500x2600x1700 Mm
Net Weight: 4300KG
Driven Type: Pneumatic
Basic Infomation
Place of Origin: China
Brand Name: BINPENG
Certification: CE
Model Number: BB30L2F
Payment & Shipping Terms
Packaging Details: Wooden case package
Delivery Time: 30 days
Payment Terms: L/C, T/T
Product Description

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 0

This type is cold glue with 2 cover feeder and dry functions .

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 1



Description:

Automatic book spine tape and Binding Machine BPBB30L2F is researched and developed independently by our company. It is a special machine which applys for wrapping the flat bookback of Books, Magazines, and Accountbooks. The finished product has the features of durability and easy to care. The advanced design and special frame ensure the exact delivery position, gluing evenly, and make sure that each book page can be flat perfectly. This machine can meet your demand and high requirement.

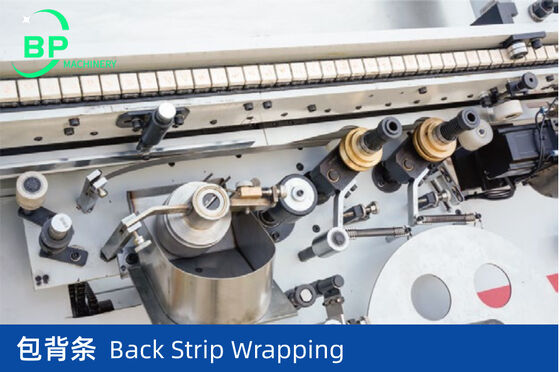

This machine has the following functions: Feeding, spread the glue on the bookback, drying, tape gluing, bookback gluing, tape cutting, and delivery.



Main Specification.

Max size of Book back  Max600mm Min310mm
Min size of book back Max180mm Min70mm
Book Thickness 5-25mm
Tape Width 20-35mm
Speed  18 meters/ minuter
Power 13.5 KW
Dimension 11500 x 2600 x 1700 mm
Weight 4300 KG

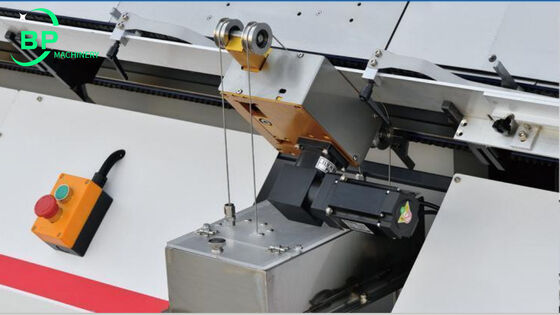

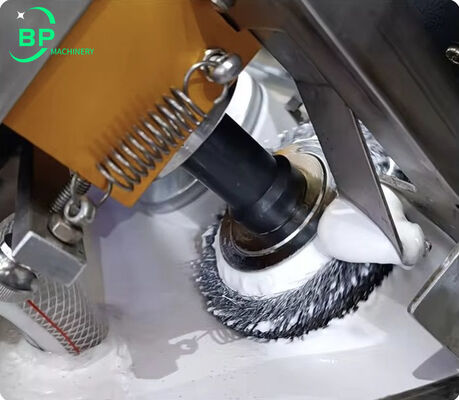

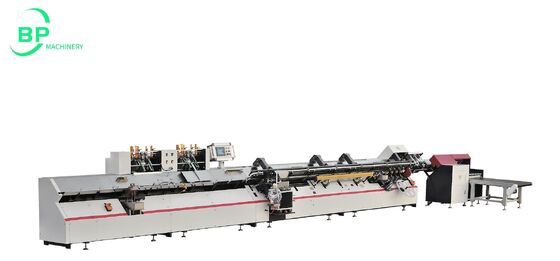

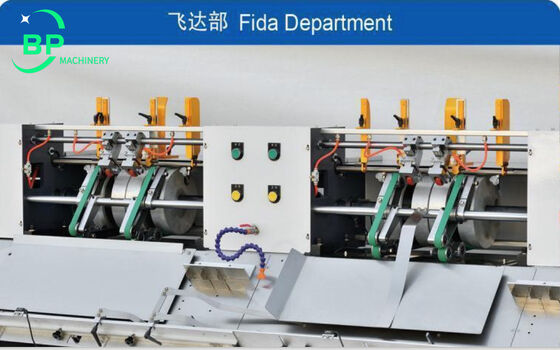

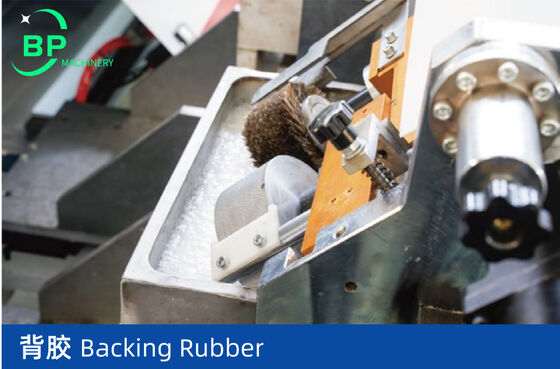

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 2Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 3Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 4Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 5Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 6Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 7



Features

1. The double-sided upper glue mechanism can make the bonding lines between the title page and the book block more beautiful; the back milling mechanism The depth and spacing of scratches on the back of the book can be adjusted at will.


2. The conveying power and collating feeder adopt servo control system. This machine can switch between cold glue, hot glue and hot and cold glue according to different needs of users, allowing users to choose freely. It can adapt to various specifications of books and is also effective. Controlling the distance between books greatly saves the cost of backpack straps.

3. The products produced by this machine are evenly glued, do not lose pages, have flat backs and straight strips, are easy to lay flat, are convenient to write, easy to operate, have higher production efficiency and reduce labor intensity. It is an ideal equipment for the production of this book.



Main Configurations.

Name Brand
PLC Delta
Touch Screen Delta
Photoelectric Switch Panasonic
Servo Motor China
Stepping motor China
Contactor Schneider
Breaker CHNT,CHINA
Heating Module CHINA.
Sensot CHINA.
Slip Ring MOFLON
Bearing HAERBIN,CHINA.
Air Cylinder ZPCAC,CHINA.
Belt CHINA.
Synchronous Belt CHINA.





Finished products :

Automatic Notebook Back Spine Strip Wrapping Machine BPBB30L2F With Dual Cover Feeder and cold glue or hot glue functions for high school notebooks binding 8
