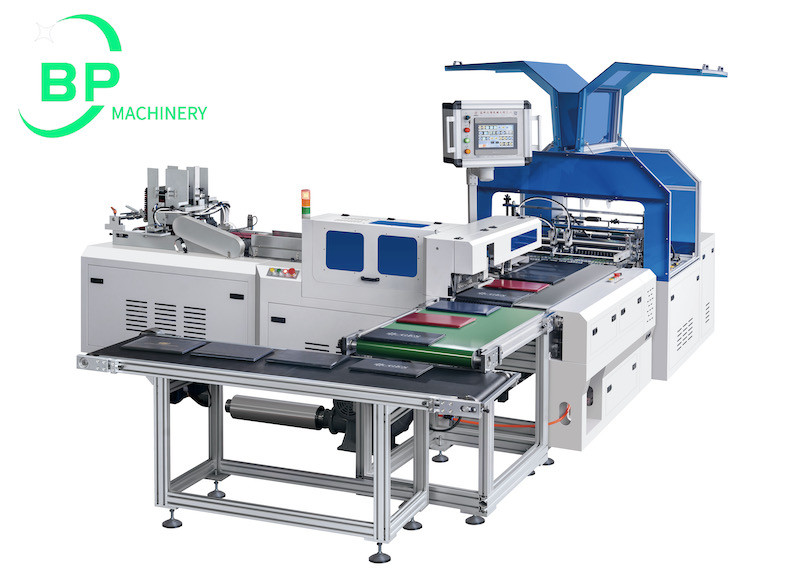

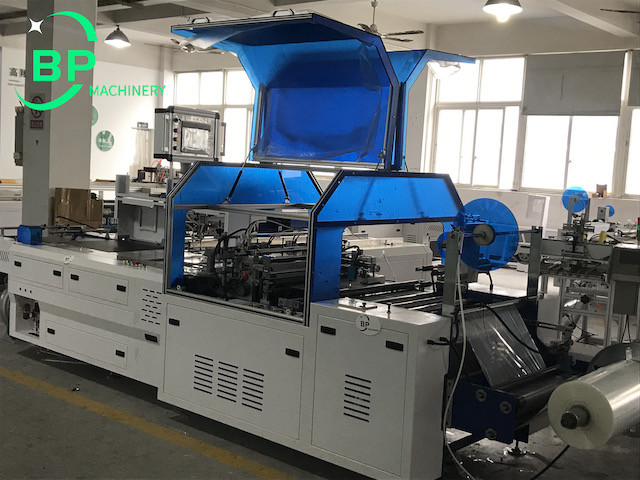

Automatic Opp Folded Film Bagging And Packing Machine For Notebook Magazine and Honor Certificate

        BP310 machine is packing machine  with opp film bagging and could be packing notebook ,magazine ,paper ,honor certifacte .

The machine is a dedicated device for fully automatic bag packing for product card, manual, certificate of honor, comic book, document bag, envelope, shingle, notebook.hangtag,and heterogenic product. It has such functions as folding in half bag making, counting, trimming, gilding labeling, sticking adhesive label, bagging and hot sealing and cutting. The whole action is of modern movement module control with PLC multiaxial servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.

If you are notebook factory ,can consider this packing methods for your wire o notebook, spiral notebook or other notebooks .

Advantages:

•  Quantity fixing: with quantity counting function, according to the customer requirement, filling the fixed quantity inside the bag.
• Bag making: with bag making machine. only feeding the plastic film, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the production efficiency, and create the benifits.
• Bag filling: The machine is controlled by PLC and servomotor. All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, ultrasonic etc, replace the manual operation absolutely.

Technical data :

Main structure

Material feeding part :

Opp folded feeding device .  with serve motor and senor ,make feeding stable and accurately .

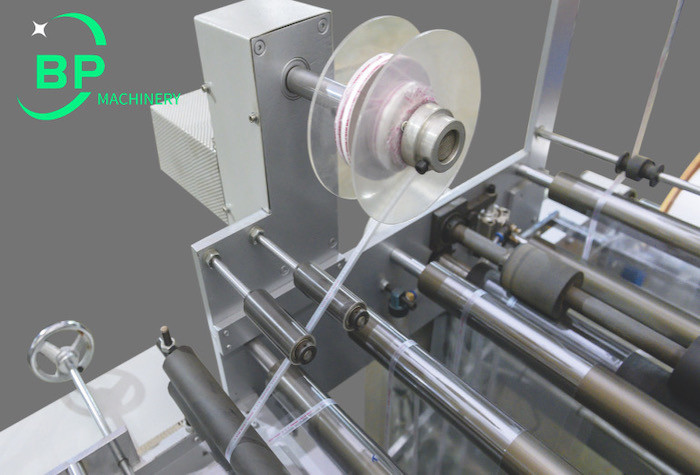

Small roll for Double face adhesive tape collect                                                                 Big roll for Double face adhesive tape feeding

Product feeding part

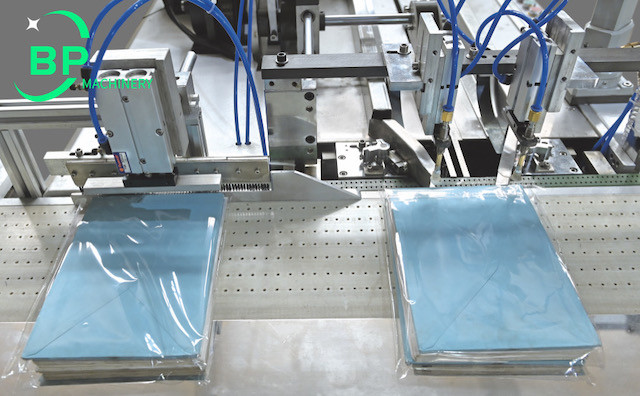

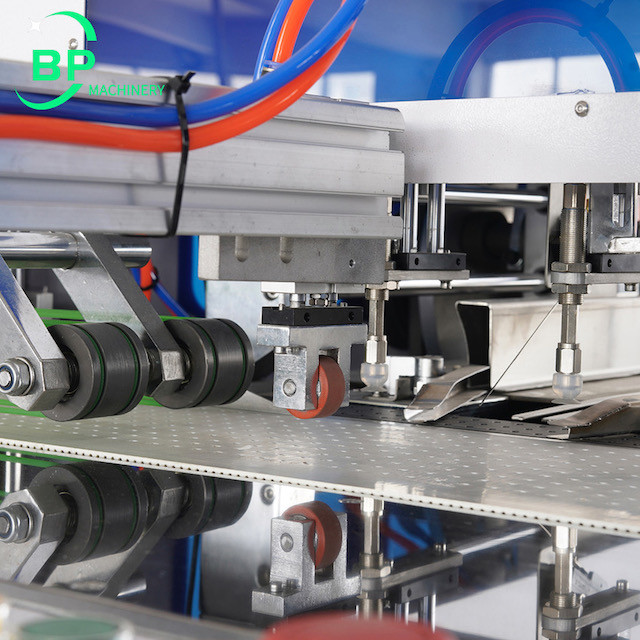

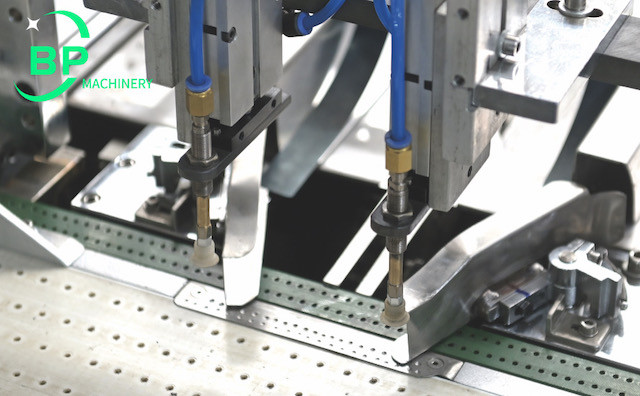

Product feeding to bag  part : with 2 suction nozzle and 2 pusher jaw ,it can make productions feed more easy and no error .

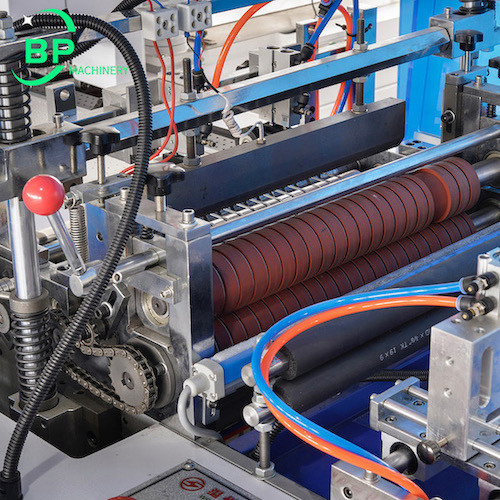

Press and mouth of bag sealing

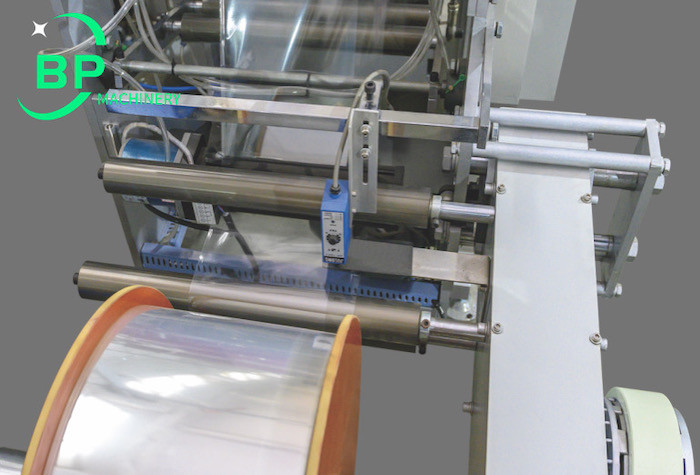

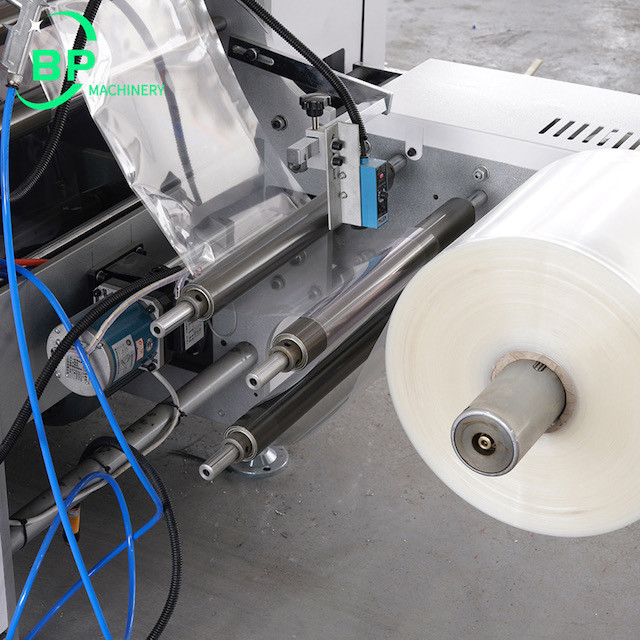

Opp film Servo feeding

Opp film serve motor feeding make it more stable and accuracy .

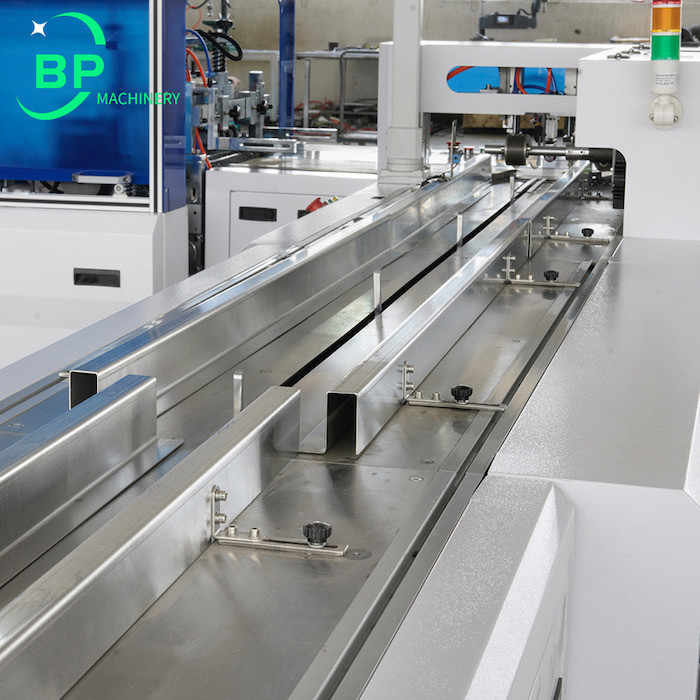

Product feeding part

With long feeding conveyor for product feeding ,also could be optional with counting device for auto feeding .

Finished packing ,collect part

Machine we now installed many many sets to Overseas and we have good video training for customer who purchase machine and do not have overseas visit to check . For notebook factory ,is a good choice to use this machine do wire o ,spiral ,stitching ,hardcover book ,desk calenadr or A4 paper packing .
