Basic Infomation

Place of Origin: China

Brand Name: BP MACHINERY

Certification: CE certification

Model Number: GPL 5545H + GPS 5030LW

Payment & Shipping Terms

Packaging Details: Wooden case

Delivery Time: 30 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 20 sets / month

Specifications

Type: Wrapping Machine

Condition:: New

Film Material: PE Film Or POF Film

Speed: Max 70 Pcs / Minuter

Air Compressing: 5.5-8.5kg/cm³

Weight: 650kg +650 Kg

Showroom Location: Canada, Turkey, United States, France, Germany, Brazil, Peru, Saudi Arabi

Packaging Type: Cartons, Film, Case, Shrink Wrapping Machine

Automatic Grade: Automatic

Voltage: 220V/380V 50-60Hz 3 Phase

After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support

Key Selling Points: High Speed Automatic

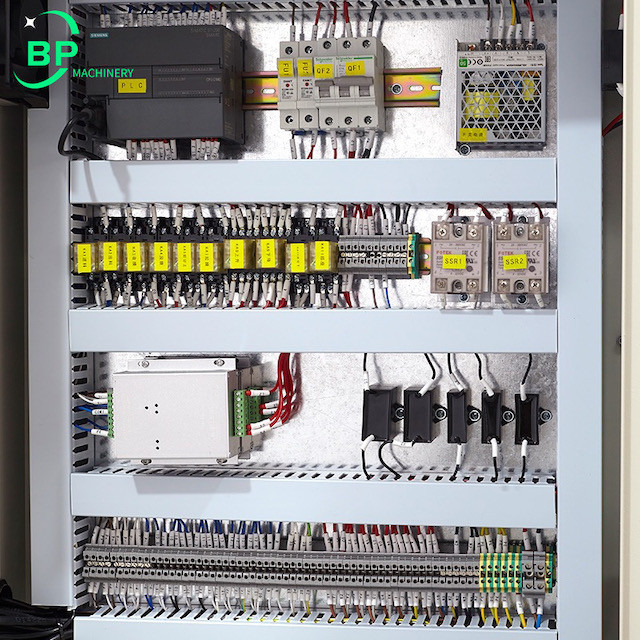

Core Components: PLC, Motor, Touch Control Screen

Gallery

Product Description

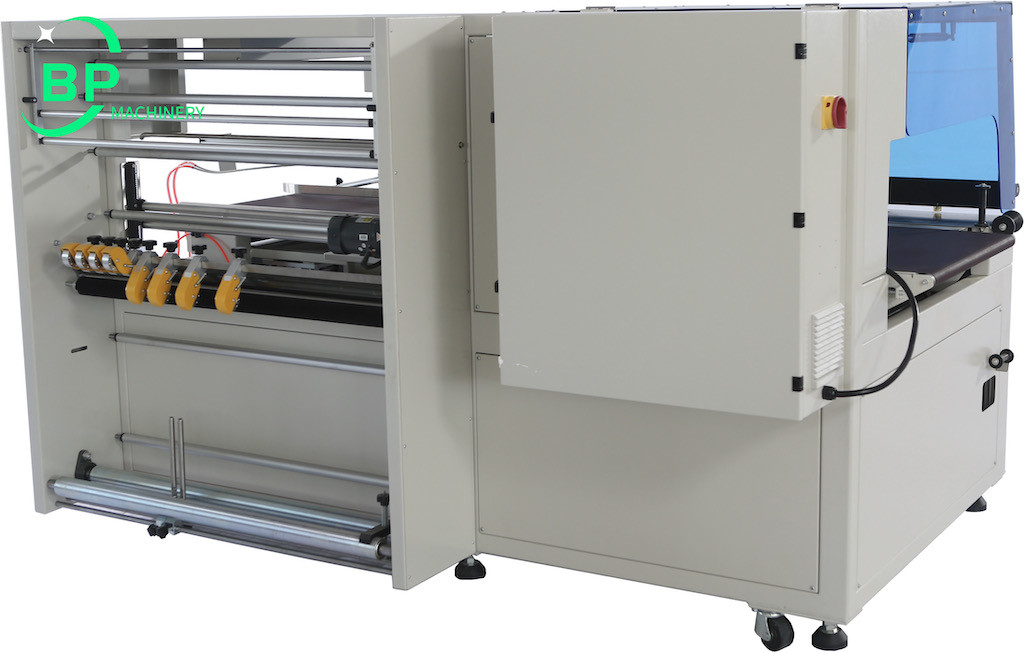

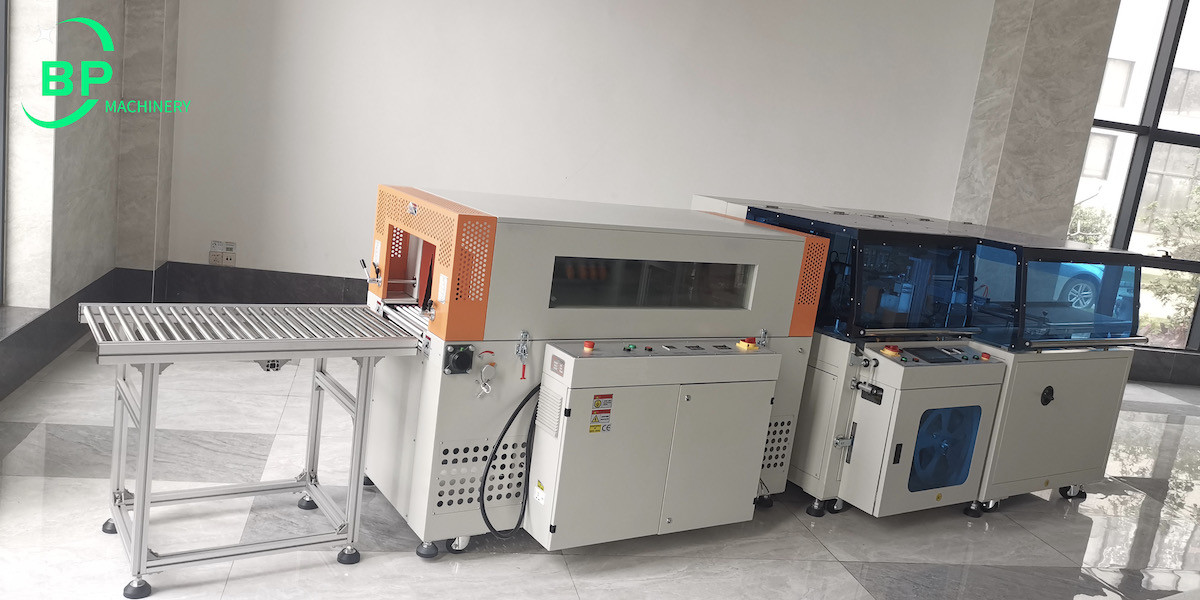

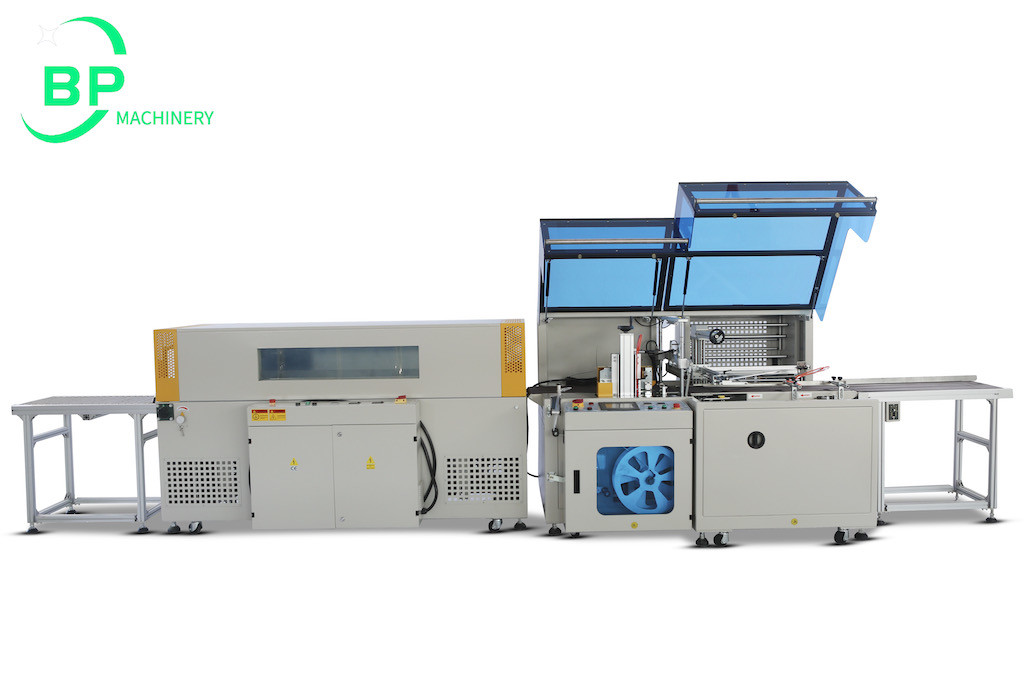

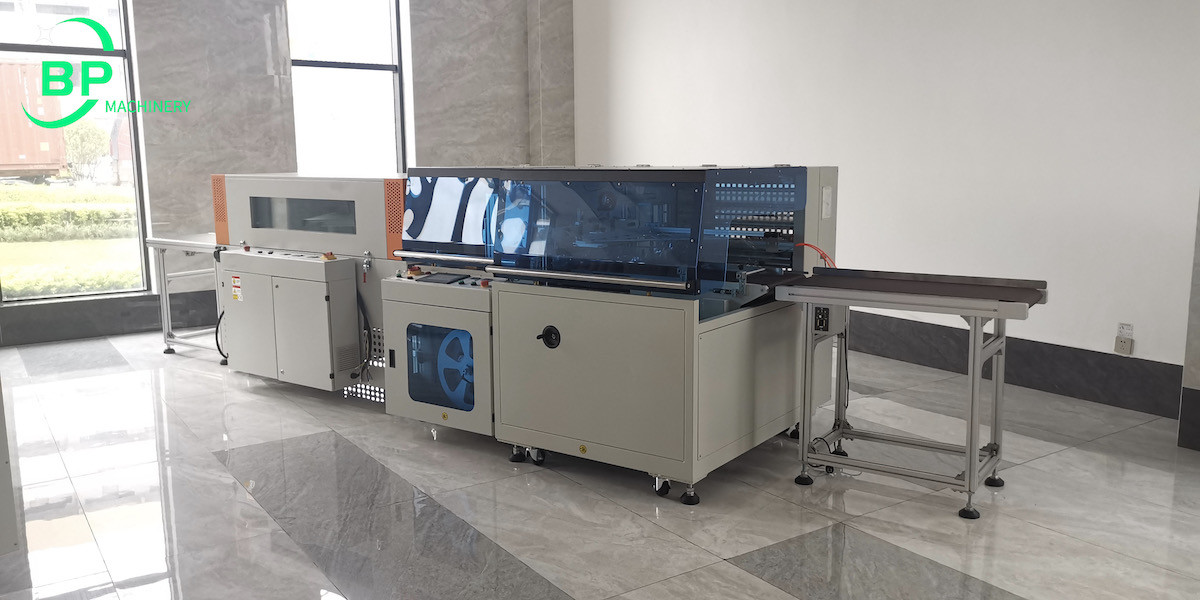

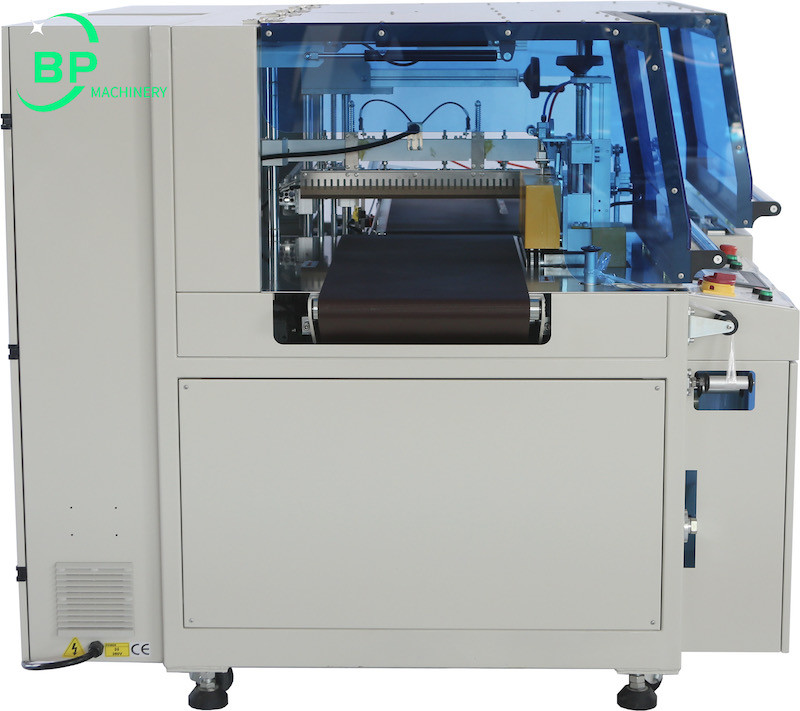

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine GPL-5545HI + GPS - 5030LW

Name: Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine
Brand: BP MACHINERY
SKU: GPL 5545H + GPS 5030LW

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 0

Description :

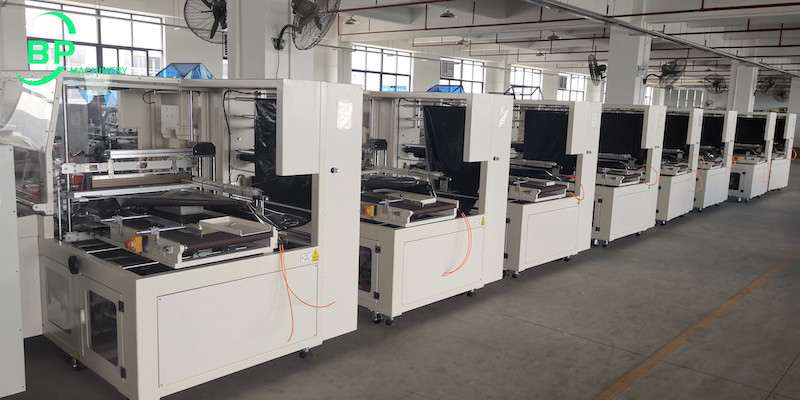

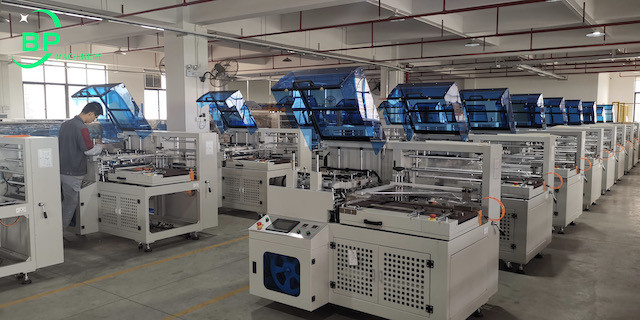

Ningbo BingPeng Machinery provide very stable and quality wrapping machine and it already be sold to many countries and used well in China market also .

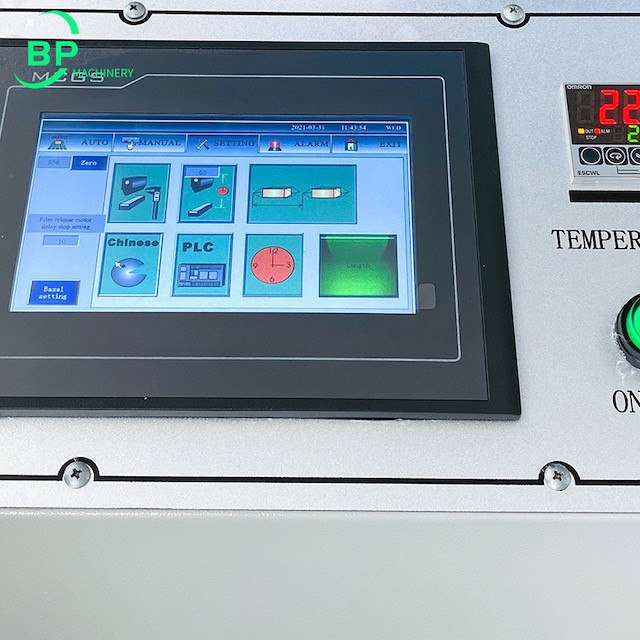

Automatic high-speed edge sealing and shrinking wrapping machine is used for automatic online high-speed shrink packaging of products. It uses optoelectronics to automatically detect products. The packaging capacity is max 70 bags/min, which is suitable for packaging various types of products of different sizes and shapes. The machine uses a touch screen to control the machine, and the adjustment is also convenient and simple. At the same time, it can store a variety of product packaging data, which can be directly transferred from the system during use. It is convenient and quick, and greatly shortens the time required for replacing the packaged product.

FEATURES

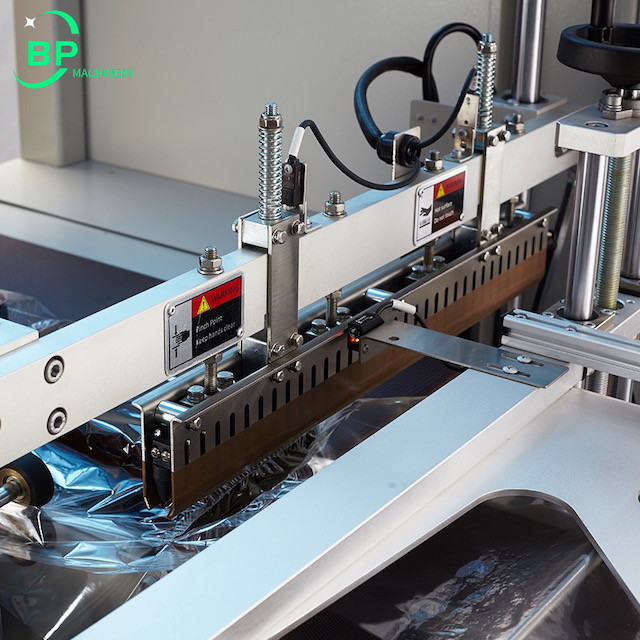

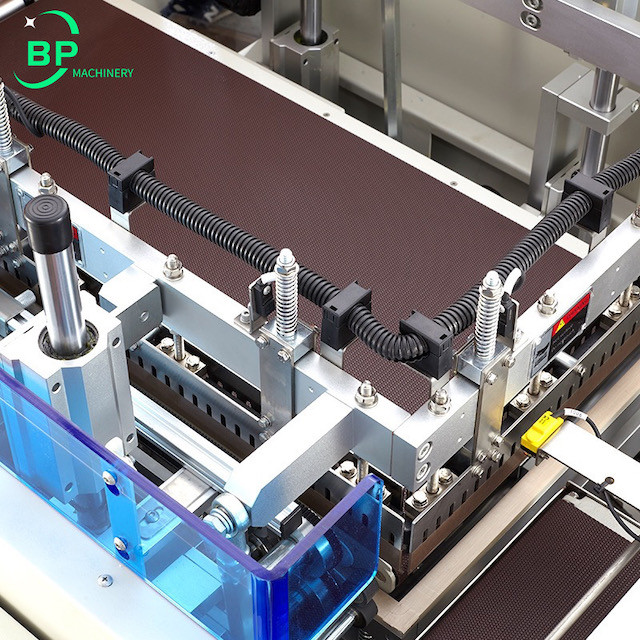

The edge sealing and shrinking machine adopts imported components to ensure the high-speed running stability of the machine. And the imported servo motor controls the sealing cutter, it ensures the sealing precision and the firming of the sealing line.
The shrinking machine adopts the edge-sealing design, the packaging length is unlimited. It can store the product packaging parameters in the system.
Fault alarm and display function; the machine has a wide packaging range and can package products of different sizes and shapes.

Technical data :

GPL-5545HI

Automatic shrink film pof edge sealing machine high quality pof film edge sealing machine

GPS - 5030LW

Pof Film Shrinking Packing Heat Wrapping Type Thermo Shrink Tunnel

Automatic Pof Film Shrink Tunnel Thermal For Paper Cup Shrink Tunnel With Window China Automatic Pof Film Shrink Tunnel -Ningbo BingPeng Machinery China Pof Thermo Shrink Tunnel part -Ningbo BingPeng Machinery

Pof Film Shrinking Packing Heat Wrapping Type Thermo Shrink Tunnel is the optimal shrink film applicator for infinite length products. A heated arm is raised and lowered as products pass underneath. Shrink film is then heated and sealed around the product.

Customized Shrink Tunnel Length
High-Temperature Resistance and Stickness Proof
Up to 85 pcs/min
Overseas After-sales Service Available
Stainless Steel Heating Tube

Type	GPL-5545HI	GPS-5030LW
Film	POF	POF
Packing Speed	20-70pcs/min	20~80pcs/min
Packing Size	W+H≦450mm,H≦170mm,L≥100mm	W≦400×H≦250mm,W+H≤480mm
Cutter size / Tunnel size	490mm	L1500×W500×H300mm
Max Temperature	280°C	200°C
Electrical	220V/380V 50-60Hz 3 Phase	220V/380V 50-60Hz 3 Phase
Power	3.5KW	16KW
Max Current	6.5A	25A
Air Compressing	5.5-8.5kg/cm³	⁄
Table Height	850+30mm	850+30mm
Machine Size	L1825W1515H1350mm	L1850×W1095×H1325mm
Machine Weight	450 kg	650kg

Samples pictures :

Pof film heat shrink packing and wrapping
