Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter

1 set
MOQ
FOB NINGBO
Price
Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Round Corner Cutter Machine
Functions: Round Corner Cutting ,trimmer Or Guillotine
Speed: Up To 90 Times / Minuter
Voltage: 220/380v
Min Cutting Width: 5mm
Max Cutting Height: Perfect Up To 100mm ,and Max Could Be 120mm
Workbench Size: Normal 220x280 ,special Could Be 300x400 Or More Bigger
Basic Infomation
Place of Origin: China
Brand Name: BINPENG
Certification: CE
Model Number: DQJ120
Payment & Shipping Terms
Packaging Details: Wooden case package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per months
Product Description

Paper cutting machine BPDQJ120 for paper single angel round corner cutter

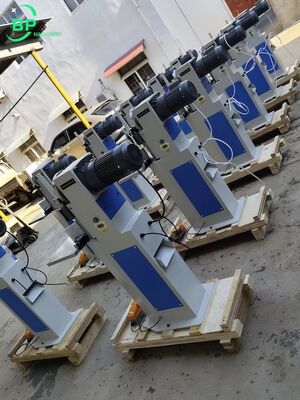

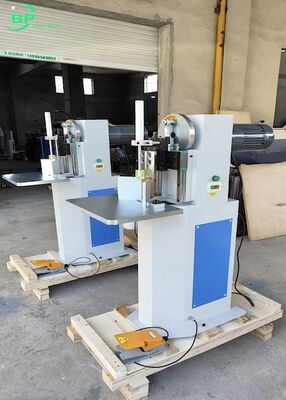

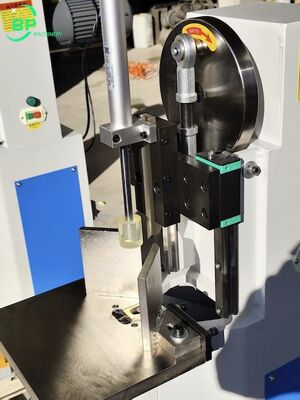

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 0Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 1Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 2

BPDQJ120 model round corner cutting machine is produced by Ningbo Binpeng Machinery , is a semi automatic single head round corner cutter designed for different kinds of notebooks, exercise books, stitched books, sewed books, spiral binding books,etc.



Application

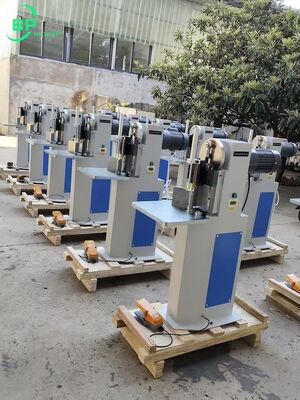

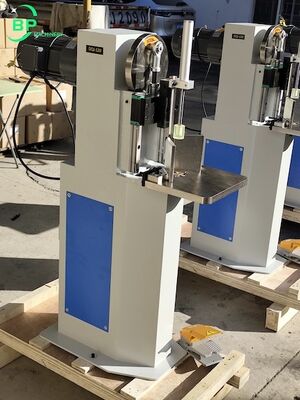

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 3Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 4Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 5

Feature



1.Electronic clutch (no need for oil lubrication, no mechanical faults), equipped with a powerful 1100-watt gear reduction motor.The motor operates only during cutting, stopping when not in use, saving 2-3 times more energy than standard models.
2.Precision linear guide slider (high accuracy, wear-resistant, does not cut copper pads).
3.Includes waste material centralized channel, foot pedal control switch.
4.Vertical adjustment of tool for uniform cutting; resolves issues such as inconsistent upper and lower cutting, copper pad cutting after slider wear, and burrs on corners.
5.Energy-efficient, motor with independent air cooling, longer service life, dual-use for rounded and right angles.
6.Comes with cast iron platform and whole machine spray painting process.


The function is the same as the Manual Corner Cutter, but driven by a reduction gearbox with electric power, controlled by the mechanical clutch, so the maximum trimming pile heigh can be 120mm, save labor, high efficiency, R3.1-R15.9 round corner trimming blades are for choosing, easy operation, cutting accurate.



Technical data :





Voltage 220V/380V
Dimension(L*W*H) 1150*550*1350mm
Weight 300kg
Production Capacity 90 times/min
Min. Cutting width 5mm
Max. Cutting height 100mm
Max. workable width 460mm




For more pictures :

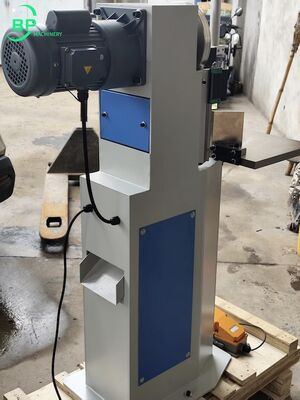

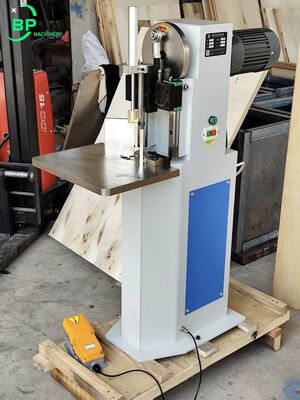

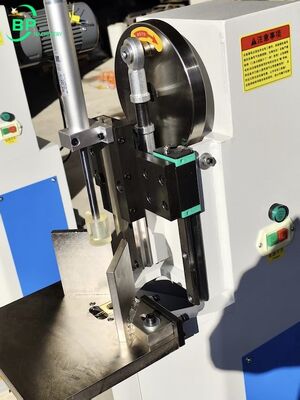

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 6Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 7Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter 8
