Wire O Forming Machine For 3:1 Pitch And 2:1 Pitch Twin Loop Wire Produce

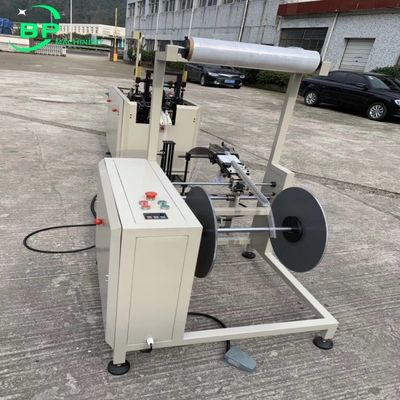

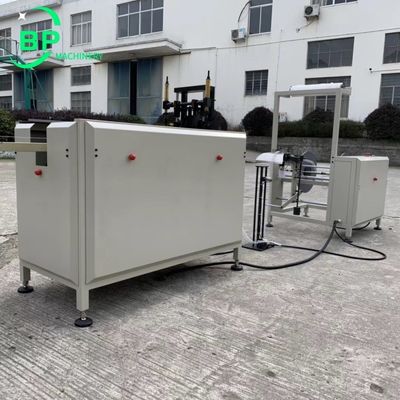

WFM31/21 wire o forming machine is BP machinery part to produce wire o ,double wire ,loop wire ,twin loop wire .Machine have 3 parts for completely sets :Wire forming part + roll spooling part + paper cutting part .
WFM31 and WFM21 are two differ machine ,WFM31 could produce wire o size pitch 3:1 (1/4 - 5/8) ,WFM21 could produce wire o size pitch 2:1 (5/8 - 1 ) . Show below :
| Size | Pitch | Nylon coated wire diameter | Wire o diameter | Machine type |
| 1/4 | 3:1 | 0.7 | 6.4 | WFM31(with 1/4 mould) |
| 5/16 | 3:1 | 0.8 | 7.9 | WFM31(with 5/16 mould) |
| 3/8 | 3:1 | 0.8 | 9.5 | WFM31( with 3/8mould) |
| 7/16 | 3:1 | 0.9 | 11.1 | WFM31 (with 7/16mould) |
| 1/2 | 3:1 | 0.9 | 12.7 | WFM 31 ( with 1/2 mould) |
| 9/16 | 3:1 | 1.0 | 14.3 | WFM31(with 9/16mould) |
| 5/8 | 2:1 | 1.1 | 15.9 | WFM21 (with 5/8 mould) |
| 3/4 | 2:1 | 1.2 | 19.1 | WFM21 (with 3/4mould) |
| 7/8 | 2:1 | 1.2 | 22.2 | WFM21 (with 7/8mould) |
| 1 | 2:1 | 1.25 | 25.4 | WFM21 (with 1 mould) |
Special wire o size like 1 1/8 ,1 1/4 ,1 1/2 inches ,could be special design !
Technical data :
| Forming Size of Pitch 3:1 | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" |
| Forming Speed of Pitch 3:1 | 400-600 loops/min |
| Forming Size of Pitch 2:1 | 5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-1/2" |
| Forming Speed of Pitch 2:1 | 200-400loops/min |
| Power Supply | 220v/1ph/50Hz |
| 3:1 overall Machine Dimention | 2200x750x1350mm |
| 2:1 overall Machine Dimention | 2450x820x1350mm |
| Corollary equipment 1 | Spooling Machine |
| Corollary equipment 2 | Paper Cutting Machine |
| Net Weigth of Forming Machine | 300kg |
| Net Weight of Spooling Machine | 100kg |
| Net Weight of Cutting Machine | 60kg |
Advantages :
Machines Corollary equipment
(Spooling machine +double wire o making machine +paper craft cutting machine )
Application:
Produce wire o rolled or loops cutted ,produced material used for notebook or calendar final binding
What you cared :
1 .Will this machine could be change mould to produce differ wire o size ?
Answer: For 3:1 pitch machine ,can be changed mould to produce 3:1 pitch differ wire o size ,same as 2:1 pitch . But we suggest 1 machine 1 size
2. How many days for machine deliver
In hot season it will be 30-60 days prepare ,in common day about 20 days enough .
3. Will this double wire forming machine adjust easy ?
Answer : Compare other similar model ,our double wire loop making machine adjust easy ,we have strict control for accessories assemble .
