Automatic wire o binding and punching machine PBW580S for notebook &calendar
1 set
MOQ
Negotiate (more quantity more cheap )
Price
Automatic wire o binding and punching machine PBW580S for notebook &calendar
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: BP MACHINERY
Certification: CE
Model Number: PBW580S
Payment & Shipping Terms
Packaging Details: 2 wooden box ,one box 3×1.3×1.85 m³ and another box 2×1.3×1.65 m³
Delivery Time: 10-30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month
Specifications
Type: Wire O Binding & Punching Machine
Function: Double Wire Binding And Paper Punching
Binding Width: Max 580mm
Punching Width: Max 580mm
Wire Available Size: Min 1/4 Wire O , Max 7/8 Wire O
Book Size: Special :Min A7 ,Max A3 Common : Min A6,Max A3
Speed: 1000-1500 Books / Hour
Punch Times: Max 5 Times, Max 3mm Per Time
Punch Thickness: Max 15mm
Warranty: 13months After Ship Sail
After Sales Services: Video Training And Engineer Visit If Possible
OEM: Could Be Add Your Logo
Product Description

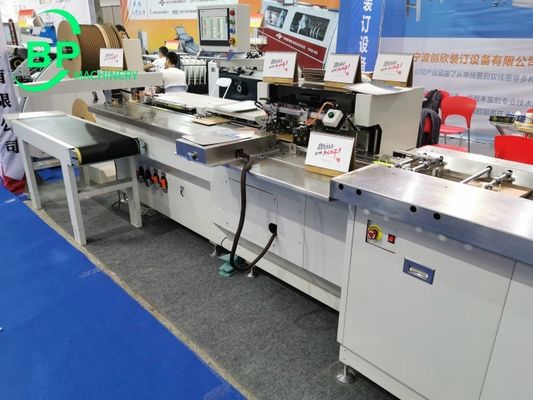

Automatic wire o binding and punching machine PBW580S
Automatic wire binding machine PBW580S

Description :

        PBW580S is automatic wire o binding machine which now be popular used in notebook and calendar factory , to be used for wire o book ,double wire calendar perforate and wire closing .

      PBW580S machine include three function, wire o binding function, paper hole punching function and conveyor auto feed function .Total 3 actions,notebook feeder,punch,then push finger catch punched notebook to wire o binding part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to wire bind part,then drop hanger,final be deliver to conveyor.



Notebook :Auto feed → Punching → Hanger → Closing → Delivery Conveyor

Calendar: Auto conveyor feed or manual feed → Punching → Closing → Delivery Conveyor



Technical data :

speed

Up to 1500 production/hour
Air pressure 5-8 kgf
Wire o diameter min 1/4- max3/4 ,special could do 7/8 wire o closing
Max size of paper 580mm x 800mm or 580mm x 420mm (feeding conveyor)
Min size of paper 120mm x 105mm ,special could do A7 size notebook
Max punch thickness 5 times total 15mm
Electric power 3ph 380
Max punch edge size 580mm
Max bind edge size 580mm

Machine advantage:

1.It combines auto punching and binding in one machine to save labour cost and improve production effciency

2.One machine could handle notebook,desk calendar,calendar bind and punch work

3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.

4.Auto collect production and could be set in touch screen for numbers books finished then move

5.If customer choose hanger device,could be do straight hanger and auto drop.

6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.





Wire o binding& punching inline machine Application:



1 .Wire o calendar

Automatic wire o binding machine PBW580SWire o calendar

Machine is popular used in calendar season for oveseas customer ,big calendar could be feeding directly in punching part  .If small calendar (non binding side<420mm)

Could be feeding in conveyor .



2 . Desk calendar

Automatic wire binding machine pBW580SDesk calendar produced by automatic wire binding machine pBW580S

Desk calendar also could be punch direclty with cover and paper in punch part for 2 or 3 times ,speed about 1400 calendars / hour .



3.Notebook

Machine design mainly for notebook factory as the market of notebook is big ,also compare calendar ,notebook punching and binding more complex and difficult .

But is easy handle by PBW580S machine , even A7 size ,cover bigger than inner paper ,all no problem .Automatic wire o binding and punching machine PBW580S for notebook &calendar 5Automatic wire o binding and punching machine PBW580S for notebook &calendar 6

Machines structure

  • Optional Hanger device +binding part+punching part

Automatic wire o binding and punching machine PBW580S calendar partAutomatic wire binding machine PBW580S binding mould Automatic wire o binding and punching machine PBW580S for notebook &calendar 9

Calendar hanger is optional part for calendar factory purchase to used hanger dropping for hanger

Binding tool we have min 1/4 ,and max 7/8 biniding tool .

Punching tool we have common choose

Hole size Appearance punch tool choose
3:1 Square 4x4 or Round 4.5mm 3:1 ,Square 4x4 or 5x5 or round 5mm
3:1 Thumb cutting square 4x4 3:1 ,thumb cut square 4x4 or 5x5
2:1 Square 5x5 or 6x6 2:1 ,Square 5x5 or 6x6
2:1 Round hole 6mm 2:1 ,round hole 6mm

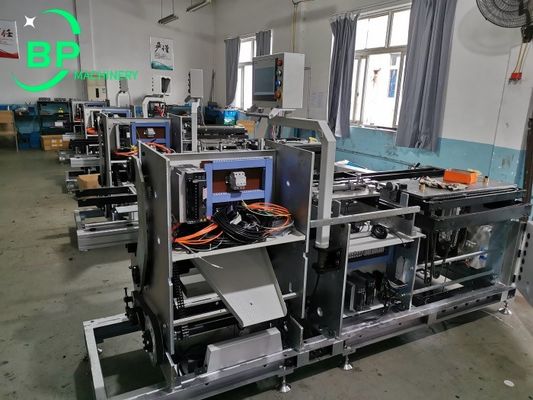

  • Structure part  (Punching part +cover feeding part +binding part +feeding conveyor part )

Automatic double wire binding machine PBW580S punching part Automatic double wire binding and punching machine PBW580SAutomatic double wire binding and punching machine PBW580S Automatic twin loop wire binding and punching machine PBW580S

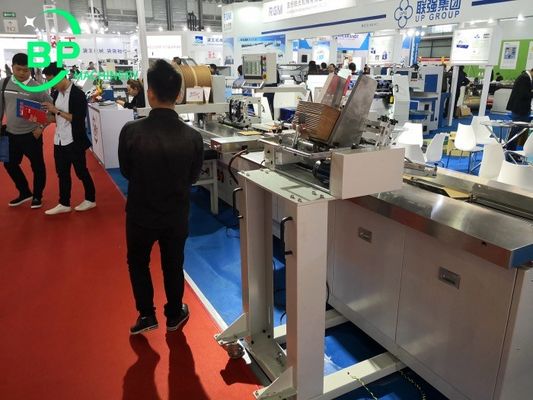

  • Machines installed in overseas :
  • Automatic calendar wire o binding and punching machine PBW580SAutomatic notebook wire o binding machine PBW580S
