APM450 paper punching machine is new developed based on our APM320 machine ,machine used very stable structure and safe cover to be ensure it can do paper ,cover ,pp sheets ,card board hole punching without stop .
This machine is used for A3,A4,A5,A6 paper size hole punching ,is good choice for printing house to choose for their wire o notebook ,spiral book ,sketch ,twin ring book hole punching .
| Max.sheet | 420 mm x350 mm |
| Min.sheet | 140mm x 100mm |
| Max punching thickness | 3mm for cover ,paper 2mm |
| Weight of paper | 60 - 350 gsm |
| Punching speed | Up to 7500 punch times /hour |
| Power | 3PH 380V 50HZ(other voltage on request) |
| Main motor power | 3KW |
| Dimension | 2580x1200x1200 |
1 . Servo motor makes machine working more accurate and stable
2. Change punching tool very easy
3. Change collect paper part (cover and paper ) ,quick time adjust
4. Easy operation and high safety with protect cover and emergency stop.
5.To make special punching hole is available for the customer’s request within the size of paper.
6.High quality for punching without deckle edge and accurate punching position.
1 . PP sheets ,hard cover ,paper punching ,also for small desk calendar ,small calendar
Hole perforating for wire o book ,plastic sprial book ,metal spiral book ,loose leaf hole punching ,below is cover ,paper hole punching
Perfect paper punch could be max 2mm thickness one time, thickness punch one time could be adjust.
Do cardboard hole punch
Perfect punch could be max 3mm thickness cardboard
For pp sheets cover wire o book ,twin ring sketch book ,spiral metal book ,plastic metal book hole punching
| Hole size | Appearance | punch tool choose |
| 3:1 | Square 4x4 or Round 4.5mm | 3:1 ,Square 4x4 or 5x5 or round 4.5mm |
| 3:1 | Thumb cutting square 4x4 | 3:1 ,thumb cut square 4x4 or 5x5 |
| 2:1 | Square 5x5 or 6x6 | 3:1 ,Square 5x5 or 6x6 |
| 2:1 | Round hole 6mm | 2:1 ,round hole 6mm |
| 3:1 | Oval : 4x3 | 3:1 ,Oval 4x3 |
(Many size punching tool could be choose )
3:1 pitch ,Square or round hole
2:1 pitch ,Square or round hole Optional choose
Or we aceept customer provide Holes size OEM.
Details depend your productions .
1 .Machine feeding structure (have feeding pusher for paper feeding and Suction nozzle for pp and cover feeding )

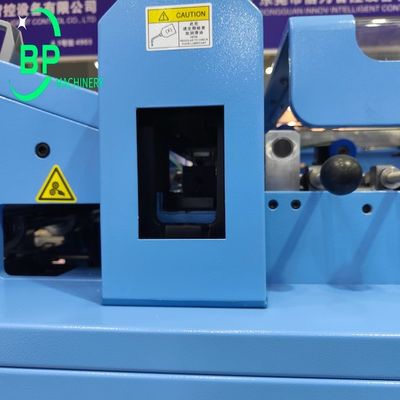

2 . Punching part with good cover and oil system with lubricaton to enhanced punching efficiency ,punching die services life .
3. Collect paper or cover pp part ,easy adjust making change paper and cover easier with a handle to change collect directions.
For binding machine used for wire o book ,can check below wire o binding machine . (link below )
Notebook wire o binding machine 420 withou binding tool change ,could for wire o min 1/4 ,max 1 1/4
For spiral metal coil notebook binding machine SSB420 do single wire coil locking (link )
