Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer

1 set
MOQ
FOB NINGBO
Price
Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Round Corner Cutter Machine
Functions: Round Corner Cutting ,trimmer Or Guillotine
Speed: Up To 20 Times / Minuter
Voltage: 3PH,380V
Max Cutting Height: Up To 70mm
Max Book Width: 460mm
Min Book Width: 120mm
Round Corner Trimmer Type: R3.1 - R15.9
Power: 2.2KW
Weight: 310KG
Machine Dimension: 1020x700x1420mm
Working Method: Hydraulic Round Corner Trimmer
Basic Infomation
Place of Origin: China
Brand Name: BINPENG
Certification: CE
Model Number: BPRC460
Payment & Shipping Terms
Packaging Details: Wooden case package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per months
Product Description

Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer

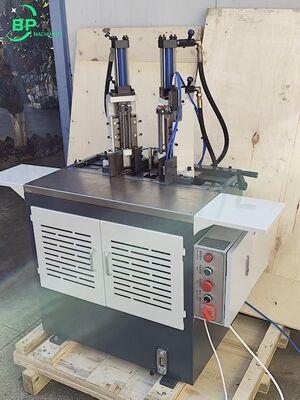

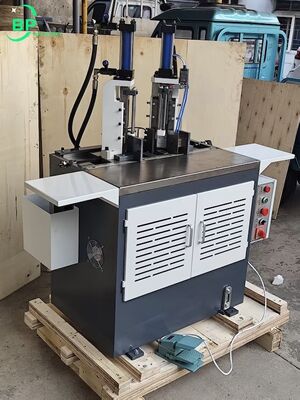

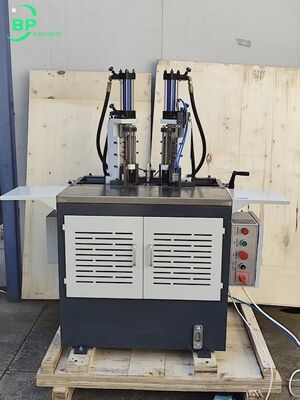

This type round corner cutter is a semiautomatic double head round corner cutter designed for efficient production. Fed from the front it cuts two corners simultaneously. After feeding the pile, the operator presses a pedal, to activate the cycle of the machine. The machine is hydraulic. Blades are available for different size radii.



Application

Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 0Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 1Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 2

Feature

1. Wide applicability: Suitable for cutting corners on books ,This machine can cut both corners simultaneously and has certain requirements regarding the length and right angles of the paper or book. It is particularly suitable for products cut by three-sided cutting.

2. Can cut both corners simultaneously, high efficiency, can cut rounded corners from R3 to R12.7, and can also cut right angles.

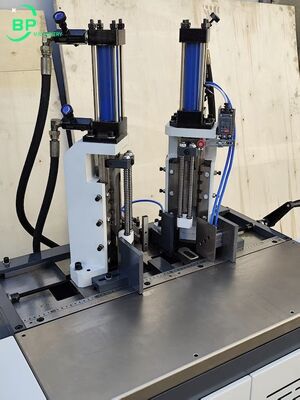

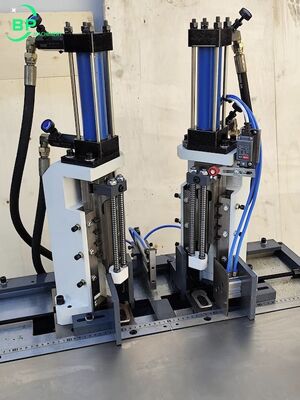

3. Simultaneous movement of the upper and lower blades for easy adjustment.

4. Driven by a hydraulic system, stable and reliable pressure, with few malfunctions.

Technical data :

Item Round corner cutting machine
Model BPRC460
Max paper size 460mm
Min paper size 120mm
Max book thickness 70mm
Rounded corner size R3.1 - R15.9
Speed Up to 20 times/minute
Power consumption 2.2kw
Power Supply 380v ,3 Phase
Net Weight 310kg
Machine Dimension 1020x700x1420mm








For more pictures :

Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 3

Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 4Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 5Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 6Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 7Paper Cutting Machine BPRC460 round corner cutter with 2 heads for notebook round corner trimmer 8
